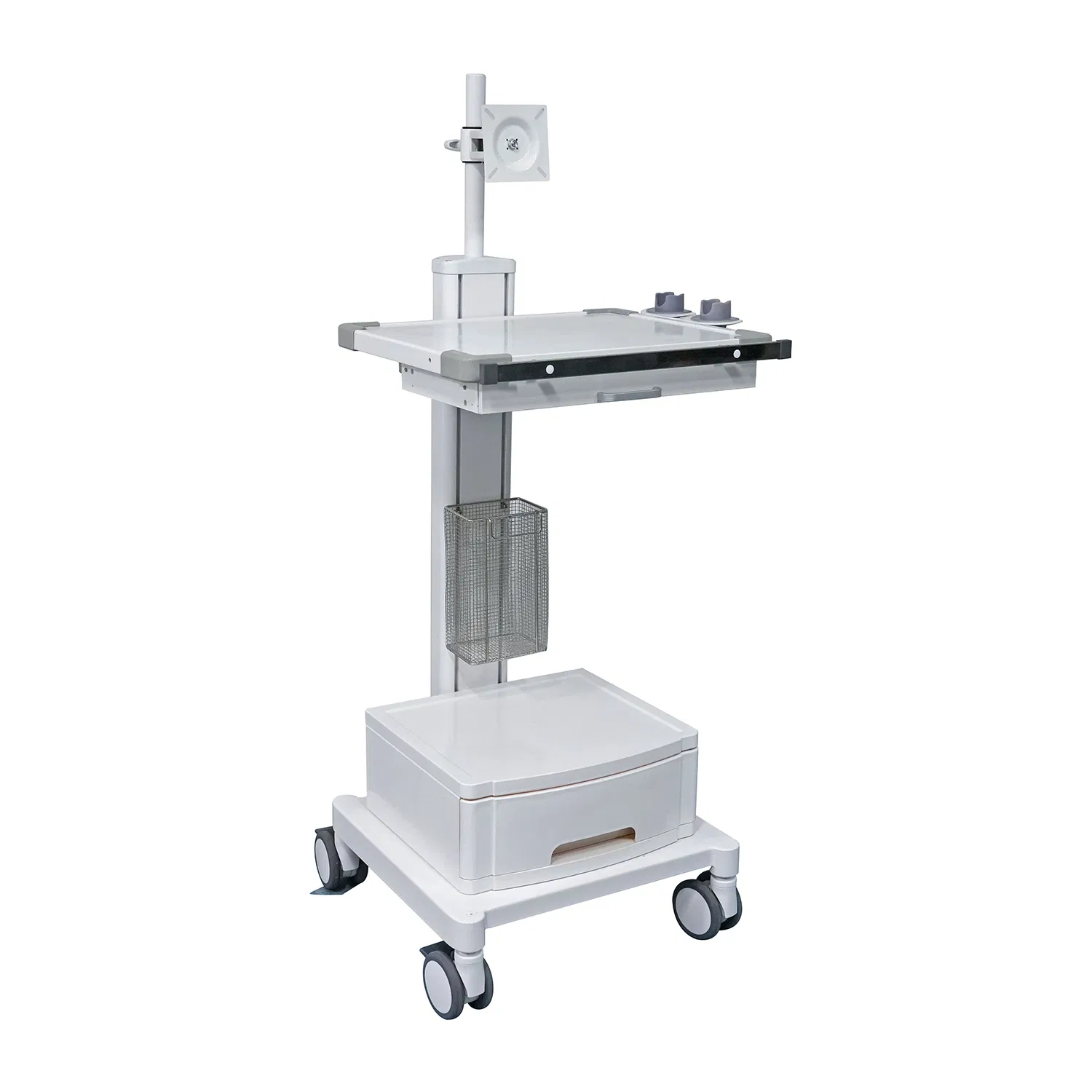

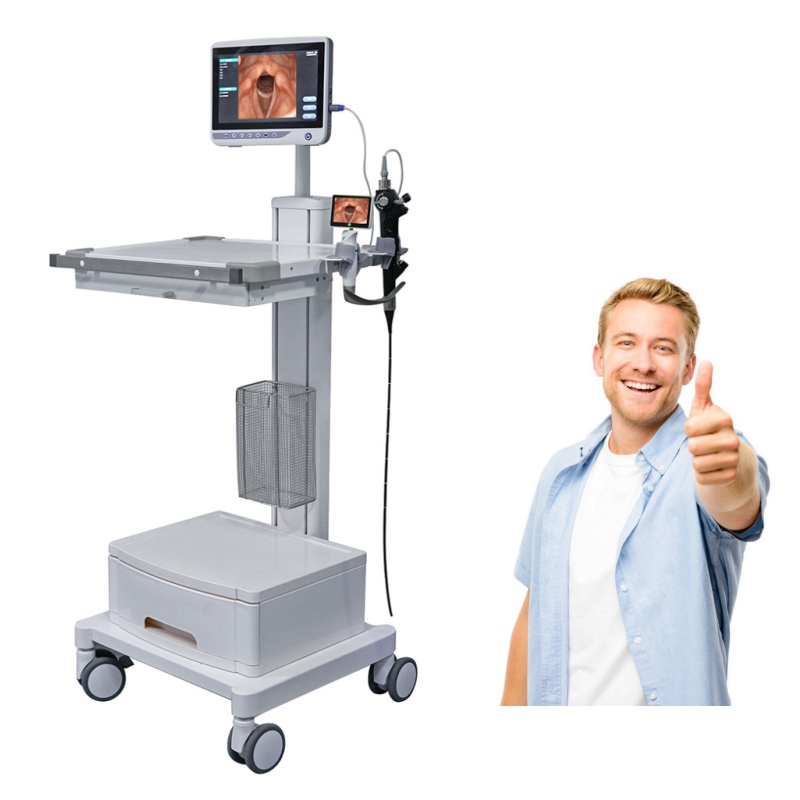

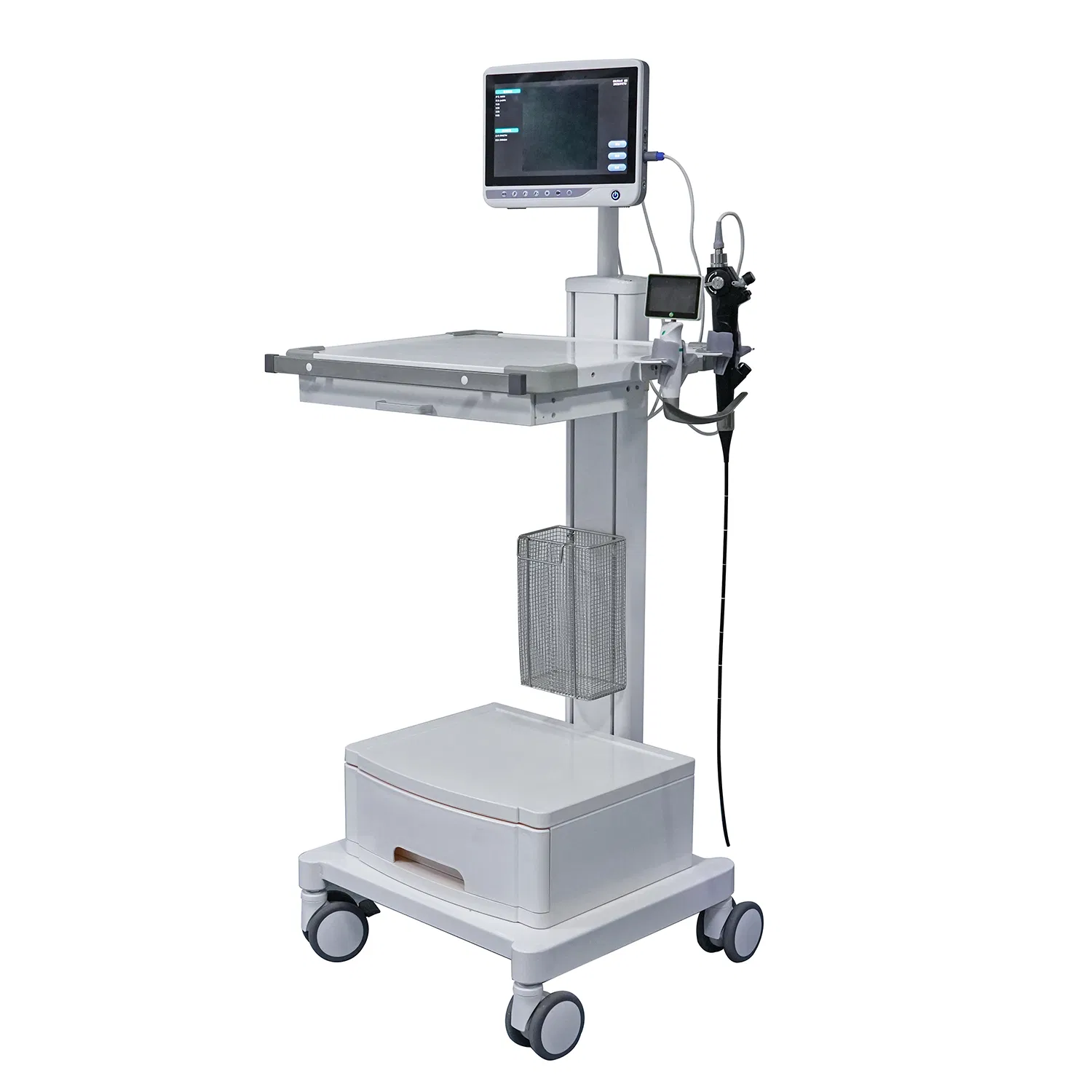

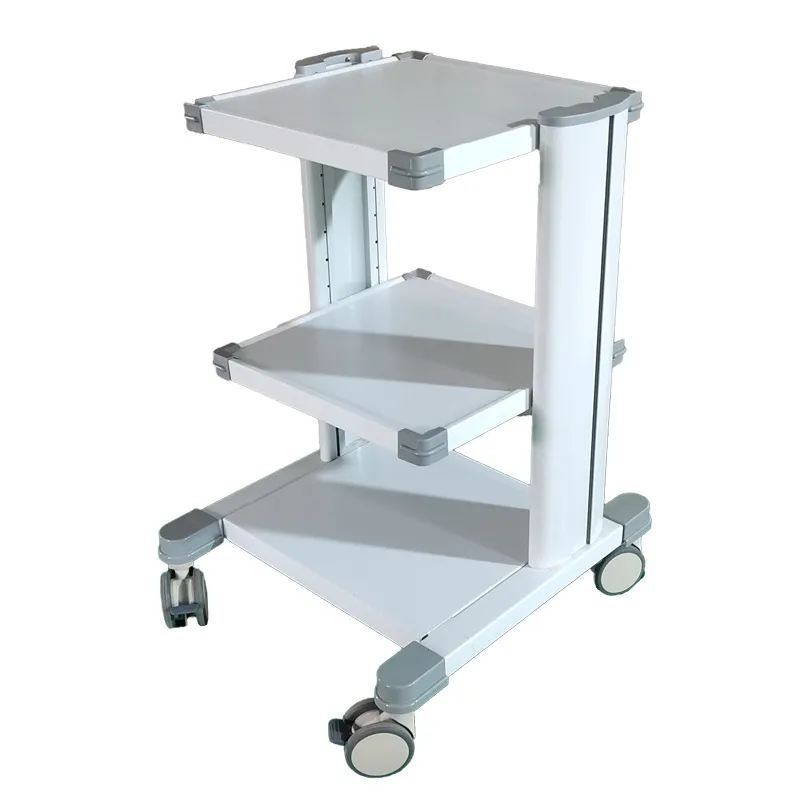

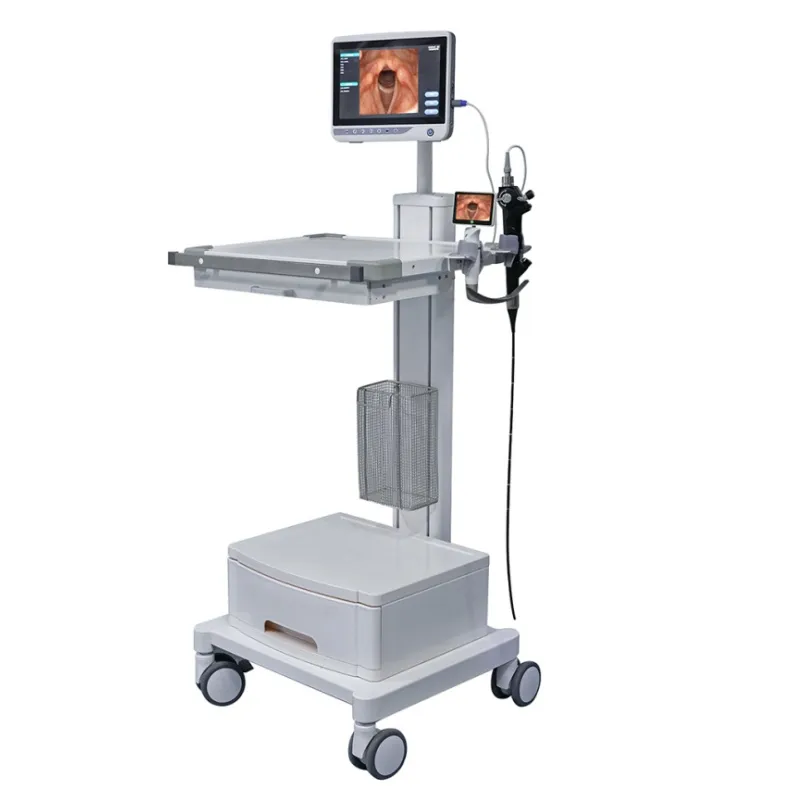

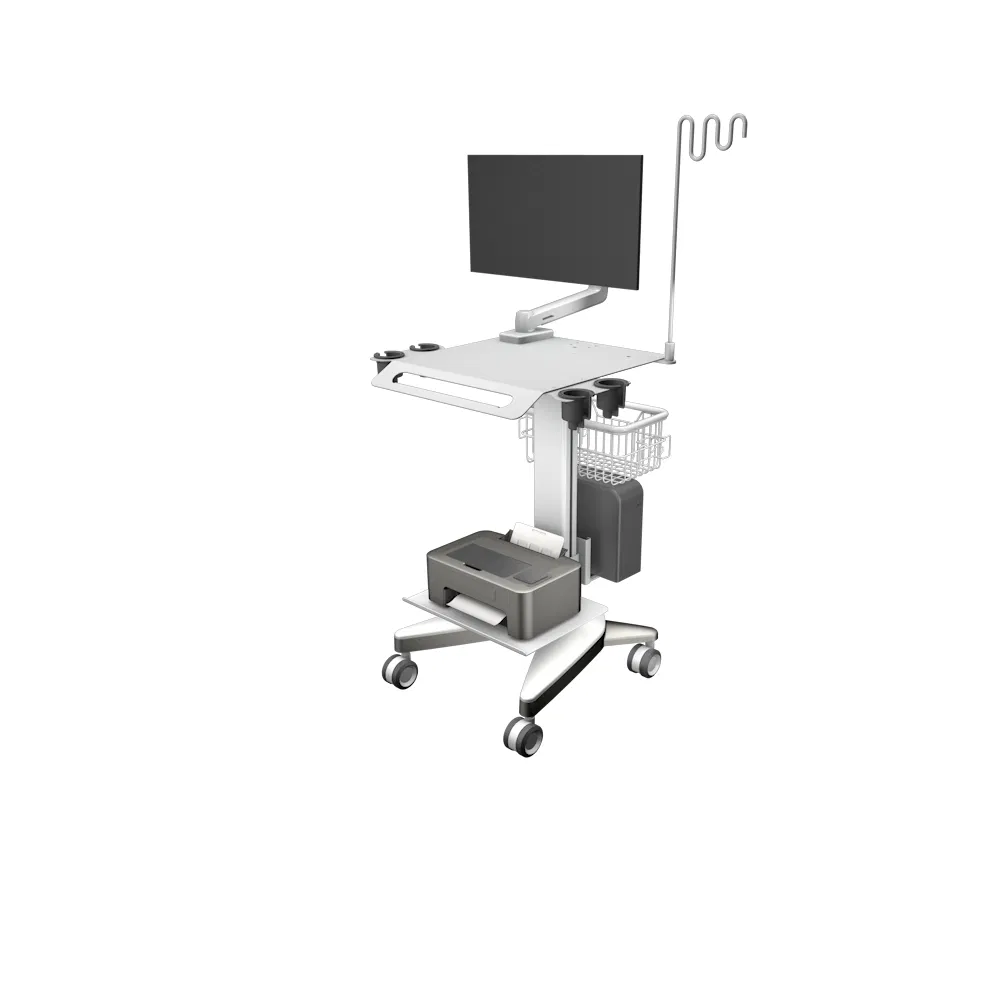

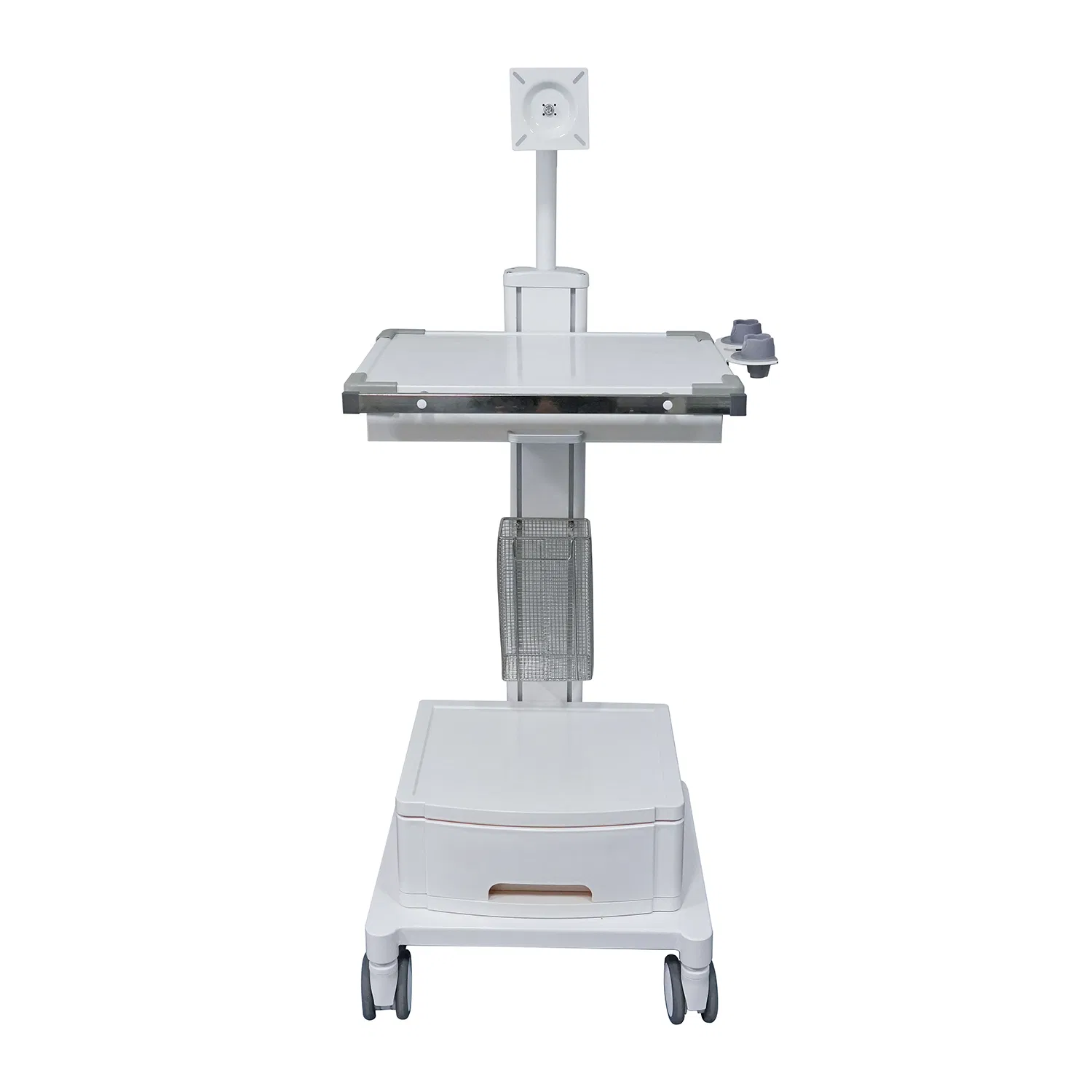

Mobile therapy and diagnosis are a very important part of diagnosis and treatment in today's hospitals. The new mobile medical trolley is used to help you assemble and move the required equipment configuration such as respiratory monitoring, endoscopy, minimally invasive surgery, etc. It is more convenient for the use of equipment across departments, equipped with standard side rails, spacious and stylish design. The width of the instrument table and the height of the column can be designed according to your requirements, which is more flexible and more user-friendly. The power socket, oxygen cylinder, etc. are integrated on the mobile platform, which can reduce the confusion caused by cables and trachea. Rounded corners and smooth surface reduce the possibility of injuries to medical staff and make cleaning more convenient.
| Item | Specification / Quantity |
|---|---|
| Height of the column | 1200mm |
| Tray | 2pcs, 570×420mm |
| Drawer | 1 piece |
| Electric socket | 3 holes X 8pcs, 220V 10A |
| IV support | 1 piece |
| Oxygen cylinder brackets | 2 sets |
| Electric line | 5m |
| Casters | 4pcs, 2 pieces with brakes |
| Gas outlet | Oxygen / Vac |
| Optional: three-section rods, mesh baskets, drawers, etc. | |
Console height from 600mm-1200mm (customizable), 340-degree rotation, gas-electric separation design.
Trays: 550*420mm size, easy to clean and disinfect. Round angle anti-collision design, height adjustable, with 2 standard side rails.
Drawer: Features an automatic reset device for safety and convenience.
Supports various standard terminals (German, American, British, French). Oxygen, Air, Vac with different shapes to avoid improper insertion.
Power: Universal sockets, 220V 50HZ 10A, includes network socket and equipotential grounding.
