Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Information

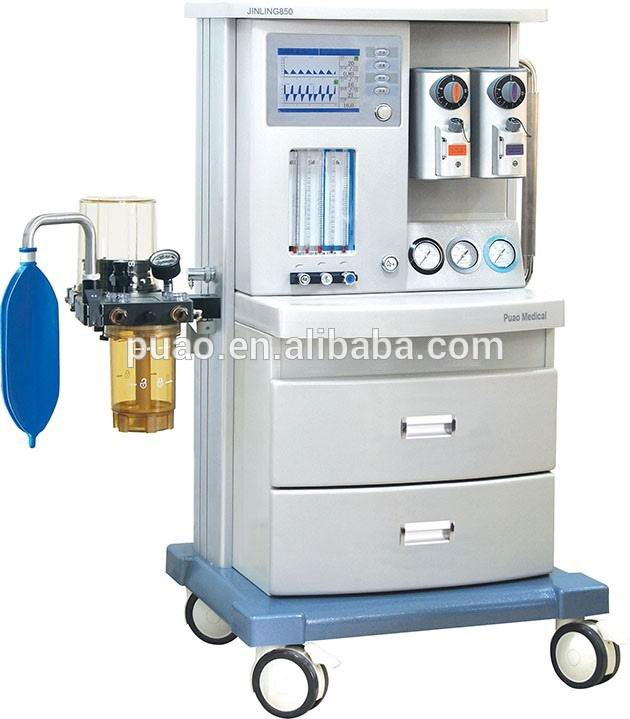

Model NO.JINLING 850
CertificationISO13485, ISO9001
GroupAdult
Display8.4 Inch LCD Color Screen
Ventilation ModeA/C, IPPV(VCV), SIPPV(VCV), IMV, SIMV, Manual, PCV
Tidal Volume0-1500ml
Respiratory Rate1-100bpm
OriginChina
ICU Medical Anesthesia Equipment Workstation

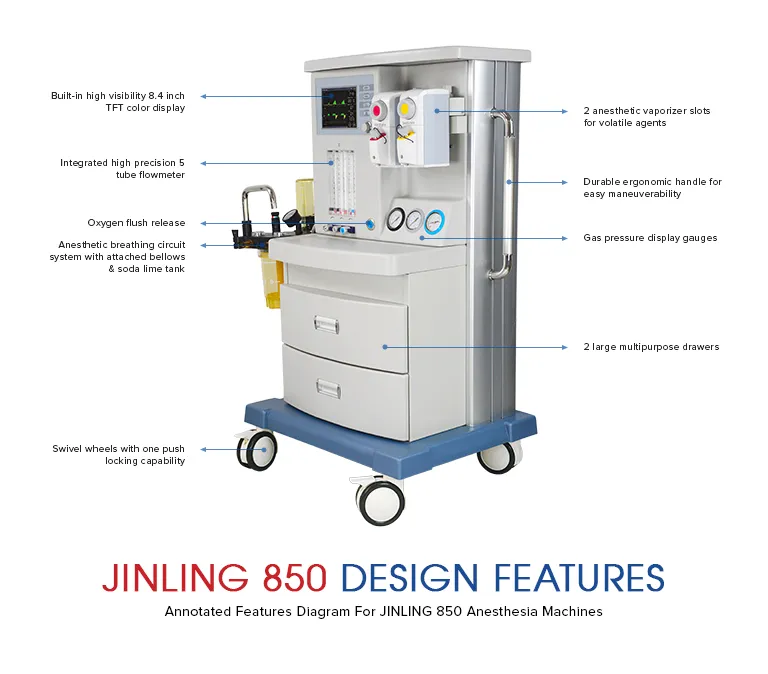

Key Features

  • Standard integrated metallic modular respiratory circuit; completely solves gas sealing issues under high-temperature disinfection.
  • High precision five-tube flowmeter with interlocking oxygen-nitrous oxide supply, ensuring oxygen output ≥ 21%.
  • Environmentally friendly frame with automated self-checking function and self-calibrating sensor.
  • Advanced Adjustable Pressure Limiting (APL) valve, ideal for low and ultra-low flow anesthesia.
  • Rotating Na-lime tank made of imported PPSU material, temperature resistant to 134°C, easy one-hand operation.
Anesthesia Machine Details

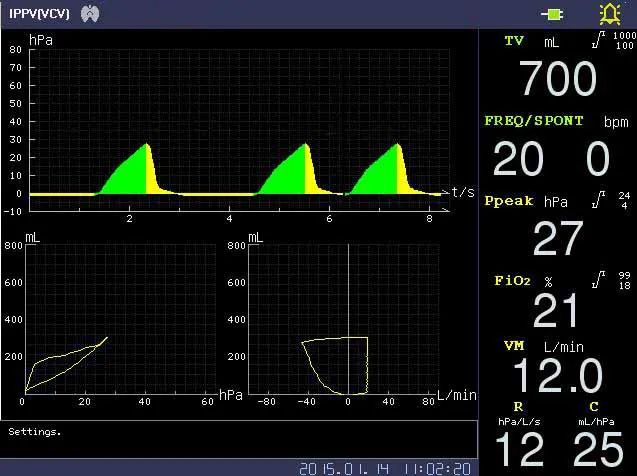

Control Panel

Technical Specifications

Parameter Specification Details
Model850 (Standard Model)
Display8.4 inch TFT display
Flowmeter RangeO2/N2O/Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
Back-up Power SupplyAt least 4 hours
Tidal Volume10-1500ml (Adjustable), 0-2000ml (Display)
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Supports inverse ratio ventilation)
PEEP Range0-20cmH2O (Electronically controlled)
Oxygen Monitor21-100% Inhaled Oxygen Concentration

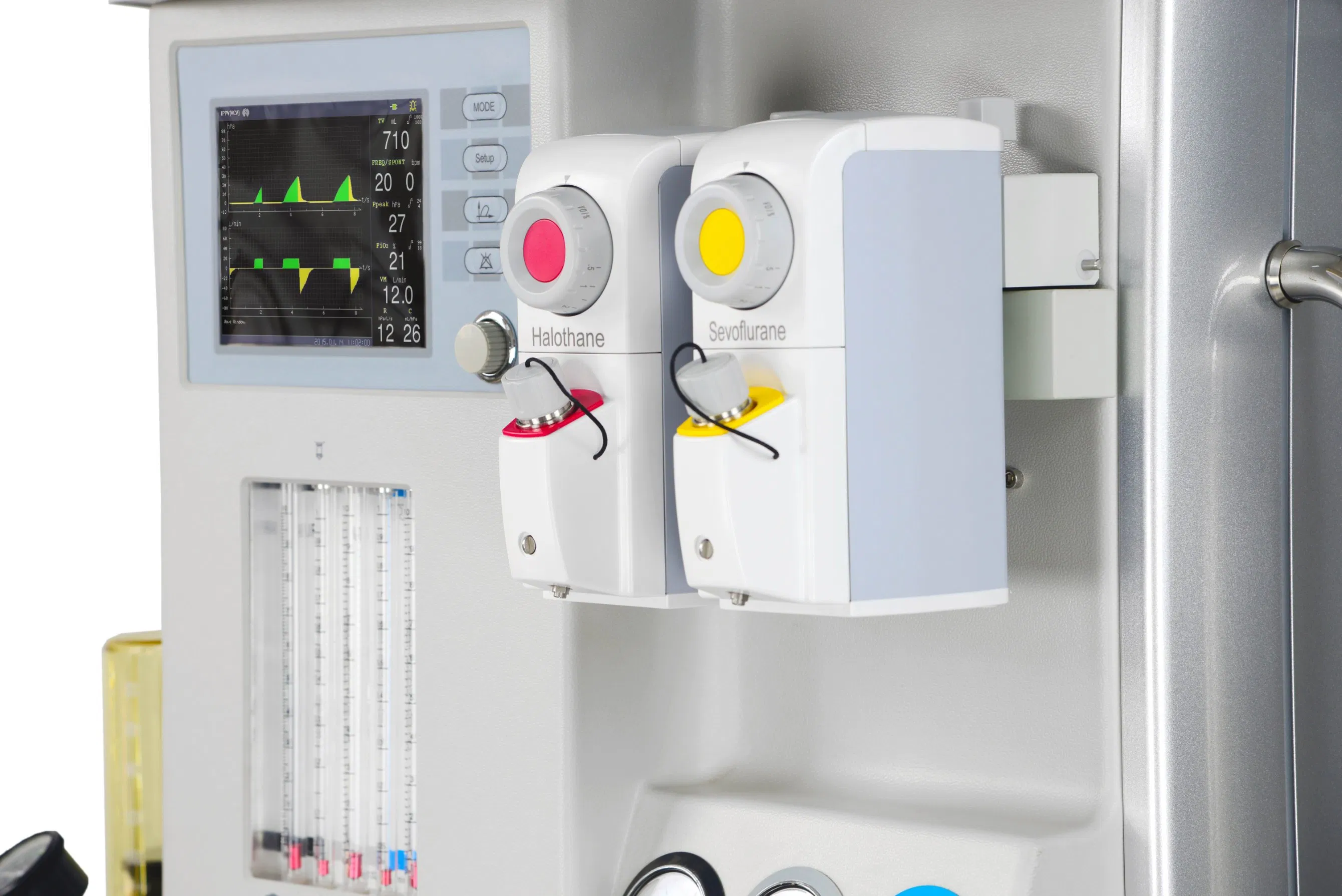

Vaporizer SlotsDouble PA-I type slots (0-5% Range)
Equipment Workflow
Anesthesia Equipment Side View

Frequently Asked Questions

What type of display does the JINLING 850 use?
The machine is equipped with an 8.4-inch TFT color LCD screen for clear visualization of ventilation parameters.
What are the available ventilation modes?
It supports a wide range of modes including IPPV, SIPPV, VCV, IMV, SIMV, PCV, and Manual mode to suit various clinical needs.
How long does the backup battery last?
The integrated back-up power supply ensures the machine can operate for at least 4 hours in case of power failure.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular respiratory circuit that is easy to clean and can withstand high-temperature disinfection.
What is the tidal volume range for this equipment?
The adjustable tidal volume range is from 10ml to 1500ml, making it suitable for a broad spectrum of adult patients.
Does it have safety features for oxygen supply?
Yes, it includes a high-precision flowmeter with an interlocking mechanism that guarantees oxygen concentration never drops below 21%.
