Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Information

Model NO.
JINLING 820
Certification
CE, ISO13485, ISO9001
Group
Adult
LCD Display
With LCD Display
Ventilation Mode
A/C, IPPV(VCV), SIPPV(VCV), IMV, SIMV, Manual
Tidal Volume
50-1500ml
(I:E) Ratio
8:1-1:10
Respiratory Rate
1-99bpm
HS Code
9018907010

China Medical Apparatus Portable Anesthesia Machine Workstation

Anesthesia Machine Workstation

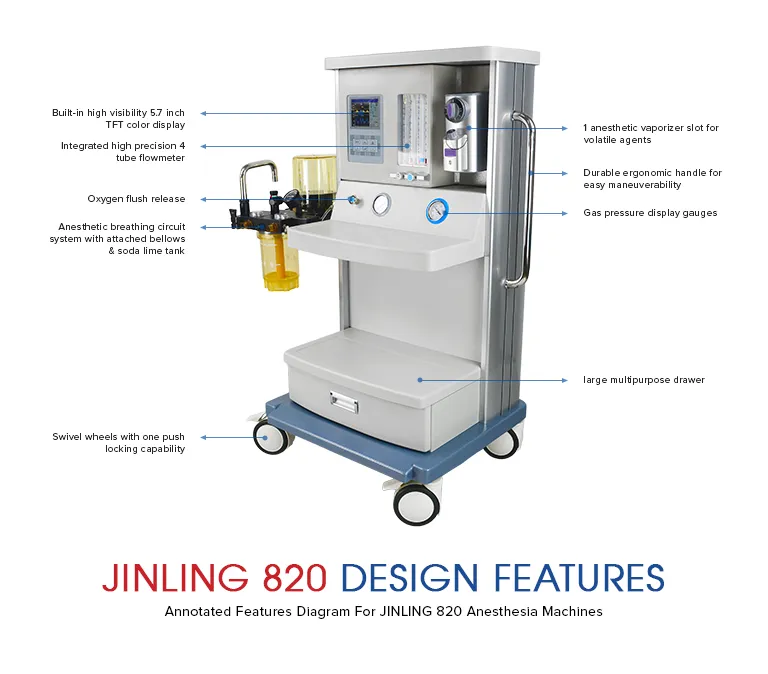

Key Features

  • Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

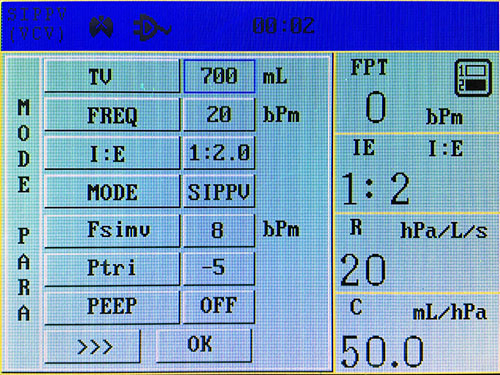

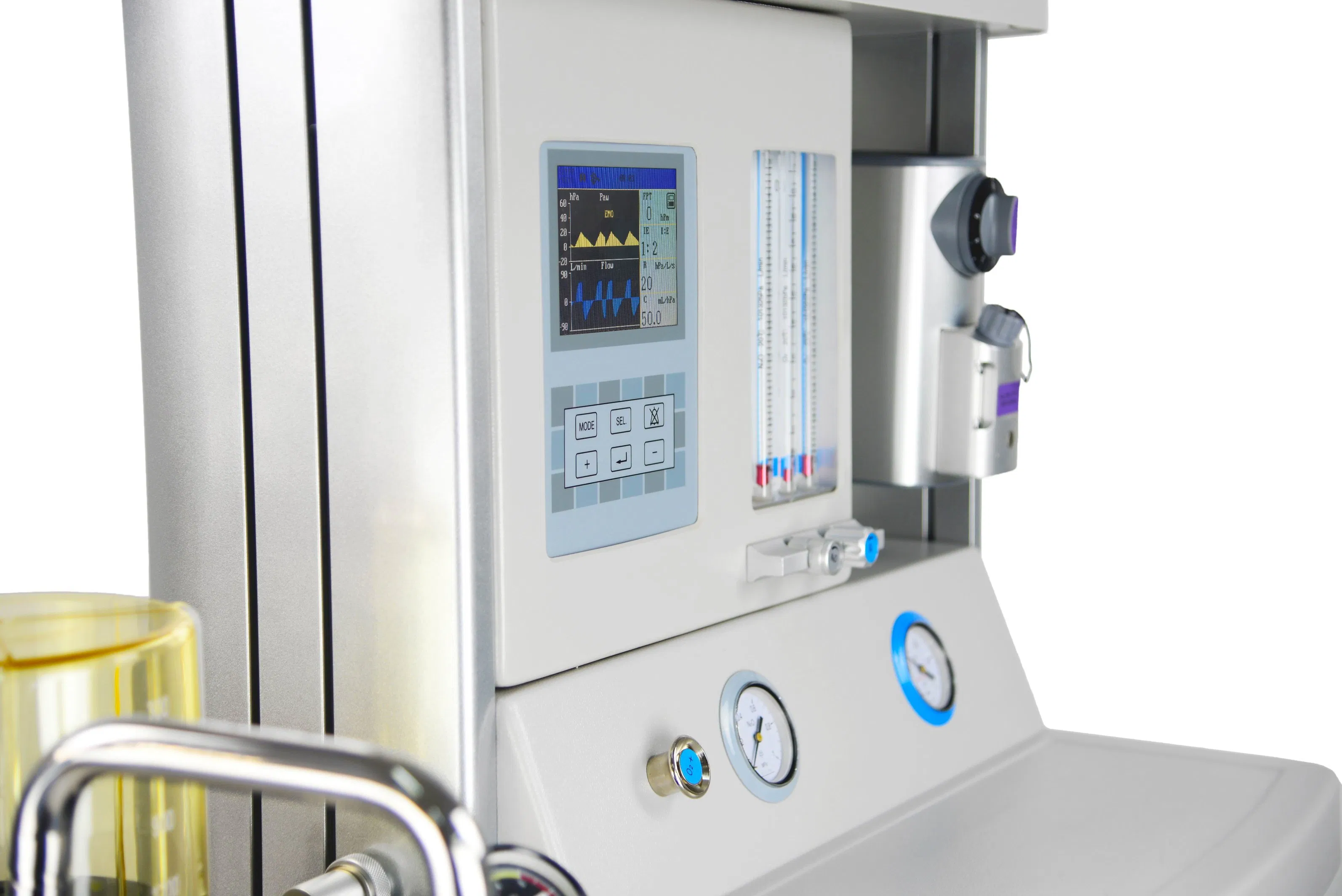

  • Advanced Display: Built-in 5.7 inch TFT display, displaying Pressure-Time and Frequency-Time waveforms instantly.
  • Modular Circuit: Standard integrated metallic modular respiratory circuit; high temperature disinfection compatible and leak-proof.
  • Precision Sensors: Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
  • High-Quality Vaporizer: Local assembly with imported components (Enflurane, Isoflurane, Sevoflurane) with self-compensation.
  • Flowmeter Accuracy: High precision four-tube flowmeter with interlocking O2-N2O supply to ensure oxygen > 21%.
  • Safety Systems: Automated self-checking during startup and automatic self-calibrating sensors.
  • Power Backup: Automatically converts to backup power mode during AC power outages.
  • Comprehensive Alarms: Audible/visual alarms for tidal volume, airway pressure, asphyxia, and power/oxygen failure.
  • Premium Materials: Advanced international rotating Na-lime tank using imported PPSU material (temperature resistant to 134°C).

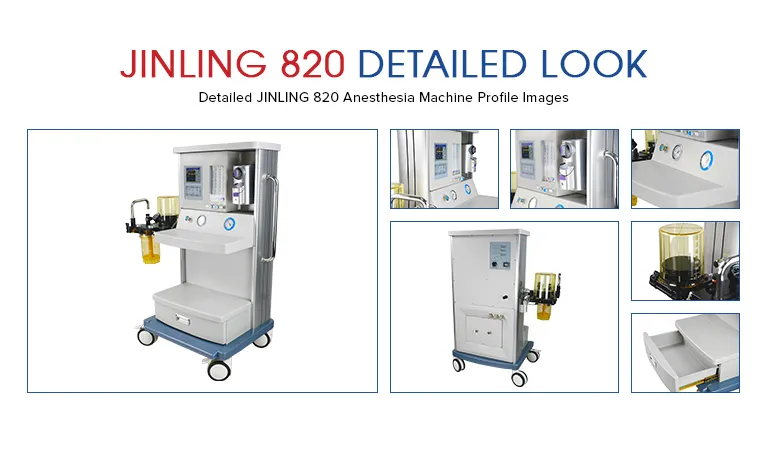

Anesthesia Machine Details

Technical Specifications

ModelJINLING 820
Display5.7 inch TFT display
Flowmeter RangeO2: 0.1-10L/min | N2O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, MANUAL
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml | Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Supports inverse ratio ventilation)
PEEP Range0-20cmH2O (Electronically controlled)
Inspiratory Pressure Trigger-10-10cmH2O (Electronically controlled)
SIGH1 sigh breath in every 80-120 breaths
Vaporizer SlotsSingle PA-I type slot (0-5% Concentration)
Anesthesia Machine View 1
Anesthesia Machine View 2

Frequently Asked Questions

1. What are the primary ventilation modes of the JINLING 820?
The JINLING 820 supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, and Manual mode to accommodate various clinical needs.
2. How long does the backup battery last during a power failure?
The machine is equipped with a backup power supply that provides at least 4 hours of continuous operation in case of an AC power outage.
3. What is the tidal volume range for this anesthesia machine?
The adjustable tidal volume range is from 50ml to 1500ml, making it suitable for a wide range of adult patients.
4. Does the device include a safety alarm system?
Yes, it features both audible and visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen supply failure.
5. Is the breathing circuit easy to disinfect?
Absolutely. It uses a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection (up to 134°C) and easy cleaning.
6. Can the vaporizer handle different anesthetic agents?
Yes, the system is compatible with Enflurane, Isoflurane, and Sevoflurane. Halothane is also available as an optional agent.
