Certification
ISO13485, ISO9001
LCD Display
With LCD Display
Display
8.4 Inch LCD Color Screen
Ventilation Mode
A/C, IPPV(VCV), SIPPV(VCV), IMV, SIMV, Manual, PCV
(I:E) Ratio
4:1-1:4 or 8:1-1:10

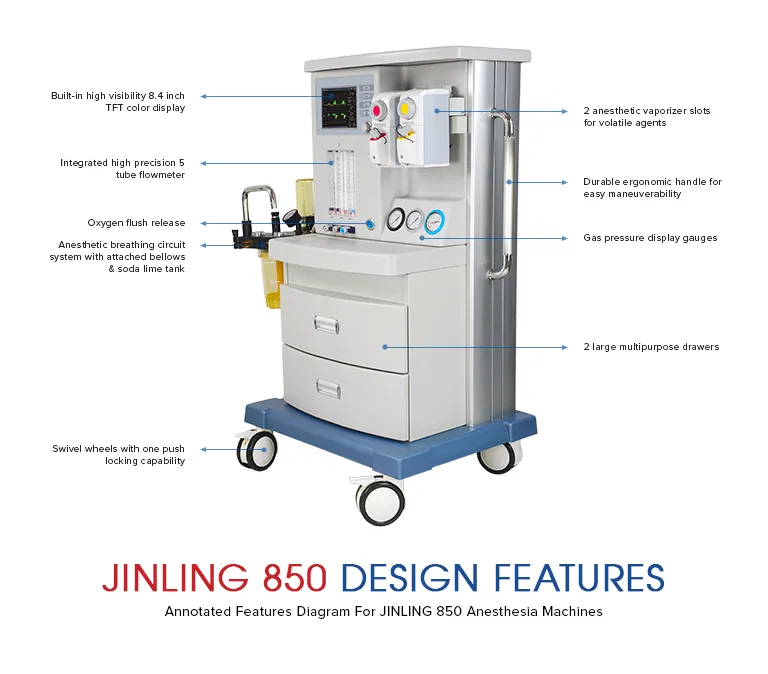

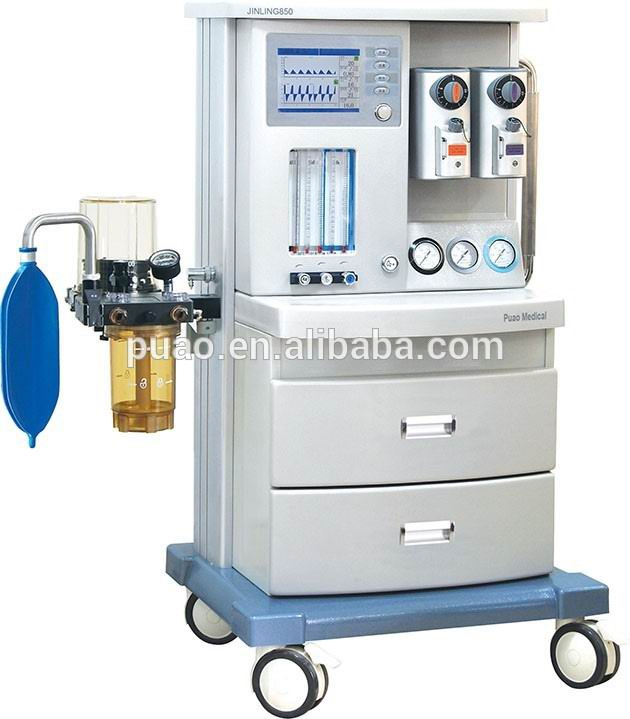

High Quality Surgical Anesthesia Machine Anesthesia Workstation
- Standard integrated metallic modular respiratory circuit; solves gas sealing under high temperature disinfection.

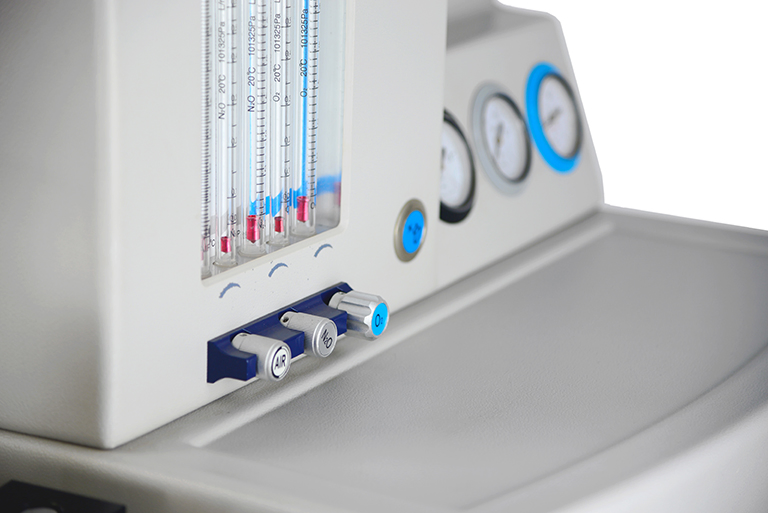

- High precision five tube flowmeter with interlocking O2-N2O supply, ensuring O2 output ≥ 21%.
- Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensors.
- Advanced stable Adjustable Pressure Limiting (APL) valve for low and ultra low flow anesthesia.
- International rotating Na-lime tank, single-hand operation, temperature resistant to 134°C.
- Multi-parameter Patient Monitor (Optional).
📋
Technical Specifications
| Parameter |
Detail |
| Model | 850 (Standard Model) |

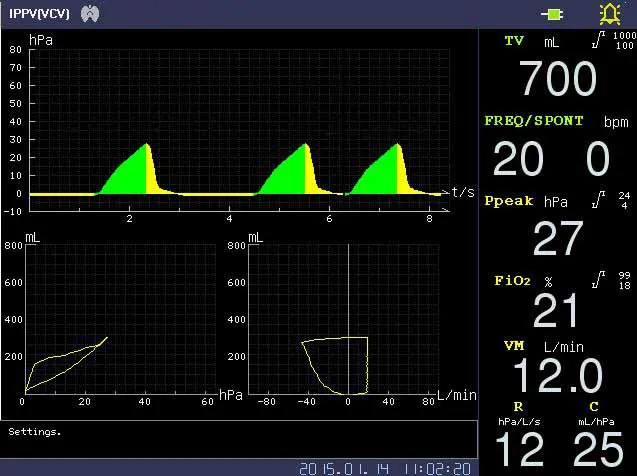

| Display | 8.4 inch TFT display |
| Flowmeter Range | O2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min |

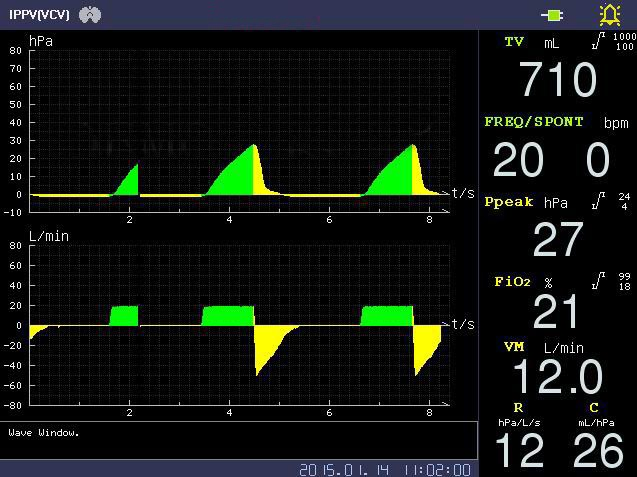

| Ventilation Mode | IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable: 10-1500ml; Display: 0-2000ml |
| Respiratory Rate | 1-100bpm |
| I:E Ratio | 8:1-1:10 (Capable of inverse ratio ventilation) |
| PEEP Range | 0-20cmH2O (Electronically controlled) |
| SIGH | 1 sigh breath in every 80-120 breaths |

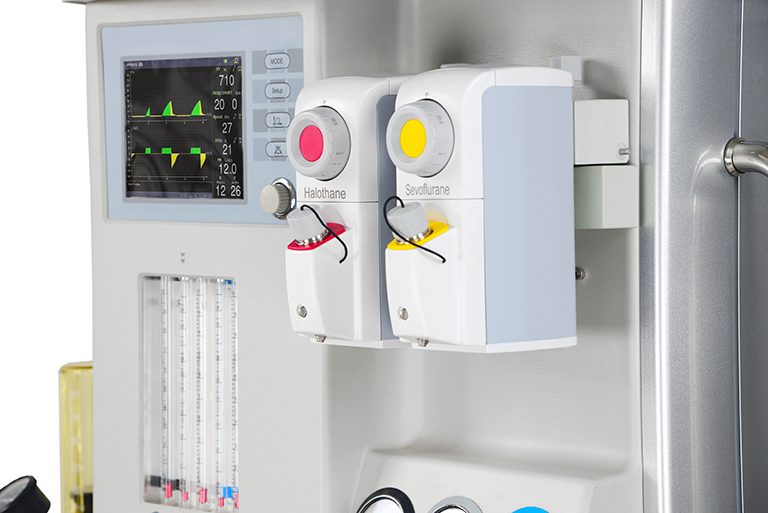

| Vaporizer Slots | Double PA-I type slots (0-5% Concentration) |
?
Frequently Asked Questions
What ventilation modes does the JINLING 850 support?
The machine supports a wide range of modes including IPPV, SIPPV, VCV, IMV, SIMV, PCV, and Manual mode to suit various surgical needs.
How long does the backup battery last?
The built-in back-up power supply is designed to provide at least 4 hours of continuous operation in case of power failure.
What is the tidal volume range of this workstation?
It offers a highly adjustable tidal volume range from 10ml to 1500ml, making it suitable for a broad patient group.
Is the respiratory circuit easy to sterilize?
Yes, it features a standard integrated metallic modular respiratory circuit that solves gas sealing issues during high-temperature disinfection and is very easy to clean.
Does it have safety features for oxygen delivery?
Yes, it is equipped with a high-precision flowmeter and an interlocking oxygen-nitrous oxide supply system to ensure oxygen output is never lower than 21%.
