Bwt-006 Height Adjustable 78-103cm Pneumatic Lifting Telemedicine System Trolley Workstation

Customization: Available
Wheel Type: Swivel Casters
Type: Treatment Cart

Product Description

Basic Specifications

Model NO.:BWT-006
Feature:Easy Cleaning, Corrosion Resistance
Color:White
Condition:New
Capacity:1000PCS/Month
Certification:ISO, CE

Product Description

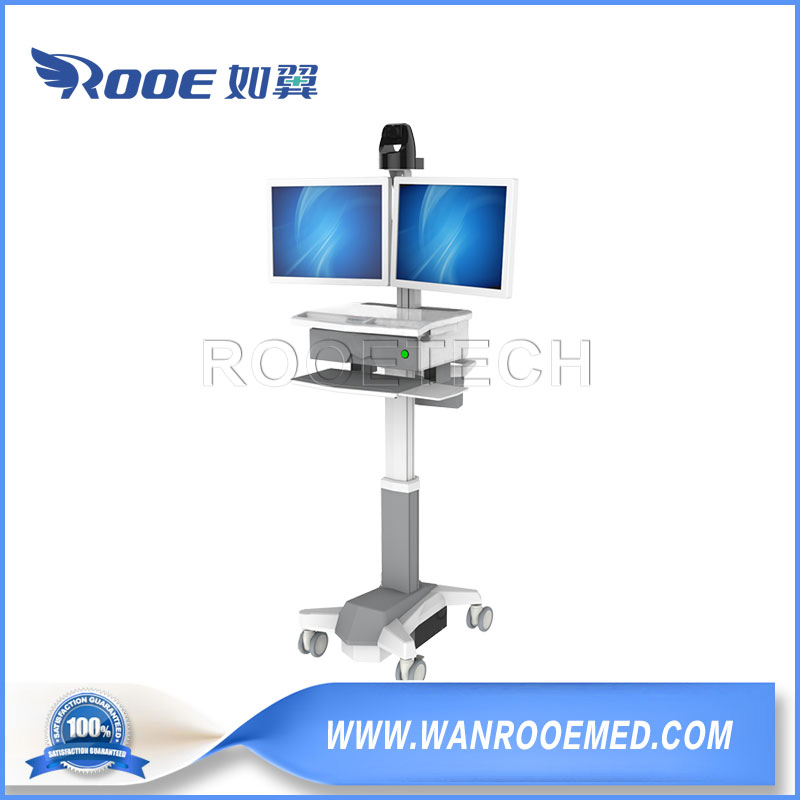

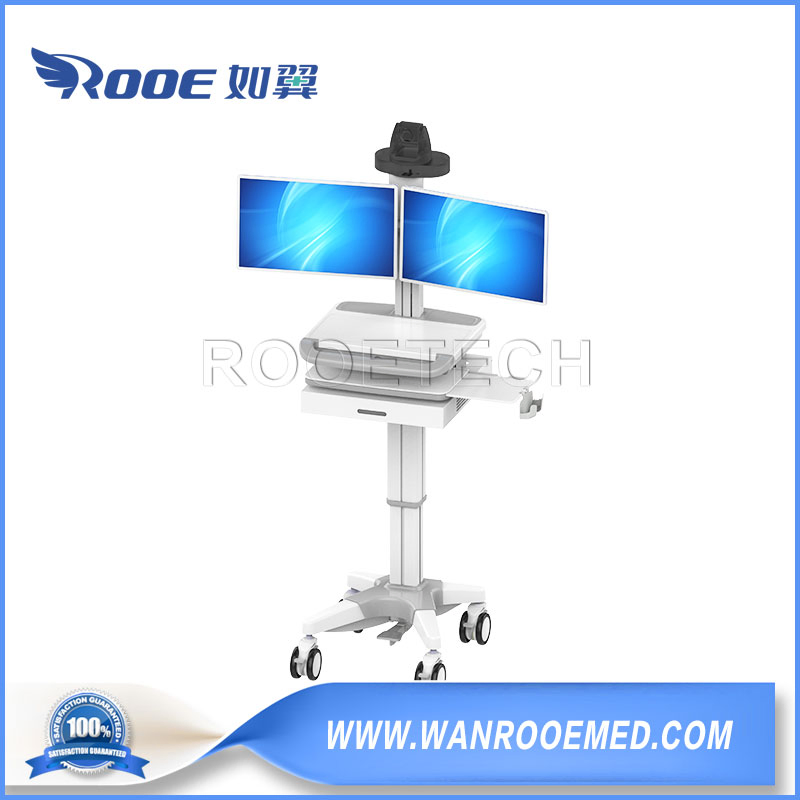

BWT-006 Height Adjustable 78-103cm Pneumatic Lifting Telemedicine System Trolley Workstation

Telemedicine Trolley Workstation

The BWT-006 telemedicine cart is an intelligent workstation designed for inpatient departments, doctor meeting rooms, ICU/CUU, and professional medical environments. This workstation integrates high-performance computing, HD cameras, and sustainable power systems to facilitate medical record keeping, remote consultations, monitoring, and surgical teaching.

With wireless access capabilities, it interacts seamlessly with hospital systems and electronic medical records (EMR), allowing for efficient data sharing and real-time expert guidance. The dual-monitor design significantly enhances diagnostic efficiency and helps balance medical resources across facilities.

Wide Application Range

X-ray Workstation
Ultrasound Imaging Workstation
Operation & Surgical Workstation
Lab/Information Management
Imaging Analysis & Nursing Workstation

Advanced Features

Dual Monitor Support: Accommodates 2 monitors for multitasking.
Mobility: Easy rolling casters with locking mechanisms for safety.
Ergonomic Design: Adjustable height for both sitting and standing positions.
Enhanced Control: 360-degree rotating camera with remote control for remote diagnosis.
Practical Storage: Includes retractable keyboard, mouse tray, and rear storage box.
Smooth Adjustment: High-quality gas spring pneumatic lift system.

Technical Specifications

Parameter Details (Model BWT-006)
Overall Size 580 * 480 * 534~1934mm
Platform Size 460 * 490mm Height: 780~1030mm
Base Size 480 * 580mm
Monitor Support Size: ≤ 21 inch Load: ≤ 12kg
Trays Keyboard: 465*234mm Mouse: 208*200mm
Optional PC Specs Intel E3 CPU, 8G/16G RAM, 1000G HDD, DDR5 2G GPU
Optional Add-ons Battery / UPS / HD Camera

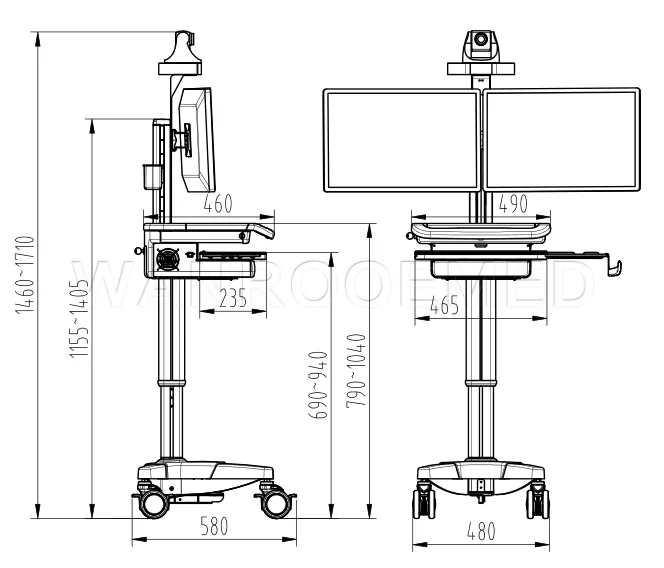

Technical Drawing

Frequently Asked Questions

1. What is the height adjustment range of the BWT-006?
The workstation features a pneumatic lifting system with an adjustable platform height ranging from 780mm to 1030mm, suitable for both sitting and standing use.
2. Does the trolley support multiple monitors?
Yes, it is designed as an integrated mobile workstation that can comfortably accommodate up to 2 monitors (recommended size ≤ 21 inches).
3. How does the camera system work for remote diagnosis?
The cart can be equipped with a 360-degree rotating camera and a video capture card, allowing doctors to perform remote consultations, record video, and playback historical data.
4. Is the workstation easy to move within a hospital setting?
Absolutely. It is equipped with easy-rolling medical casters and locking wheels to ensure maximum maneuverability and stability when stationary.
5. Can the internal computer specifications be customized?
Yes, the medical computer system is optional and customizable, with configurations typically including Intel E3 processors, 8GB RAM, and large-capacity hard drives.
6. What materials are used to ensure durability?
The workstation is built with high-quality materials featuring corrosion resistance and easy-cleaning surfaces, making it ideal for sterile medical environments.
