Product Description

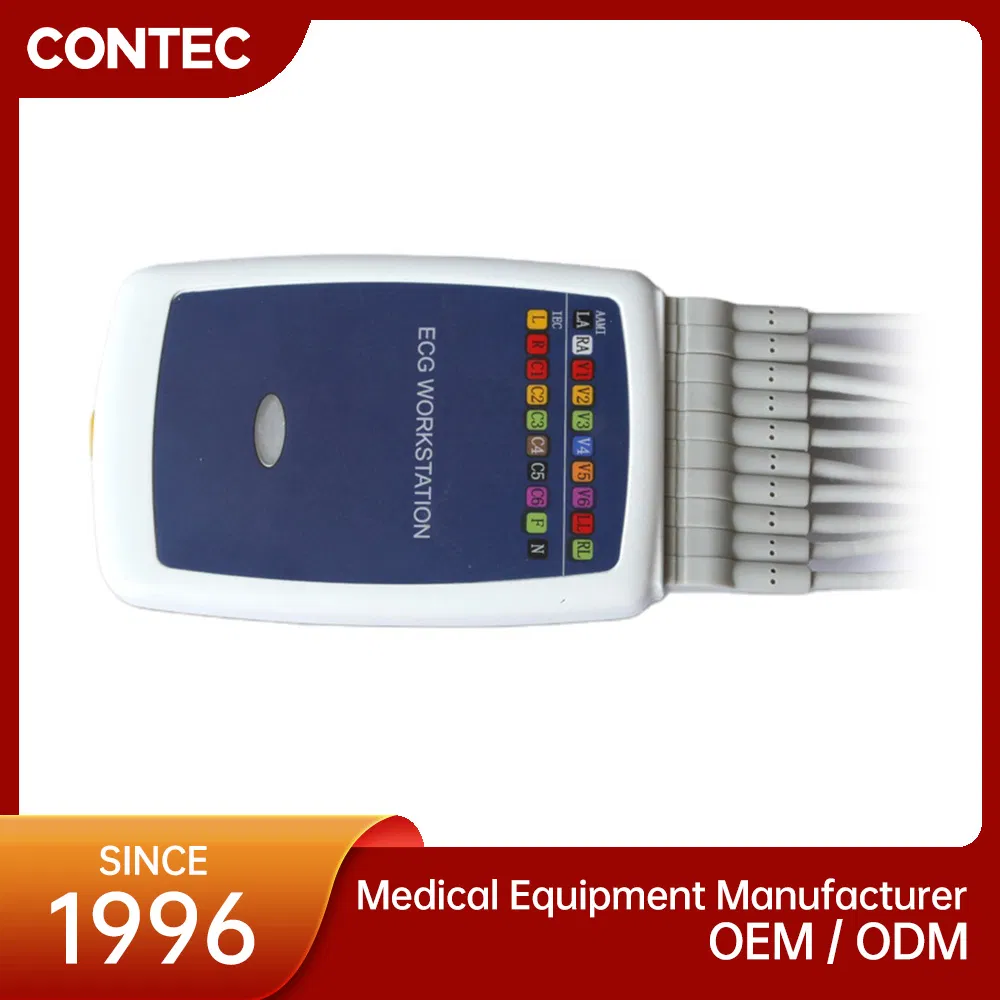

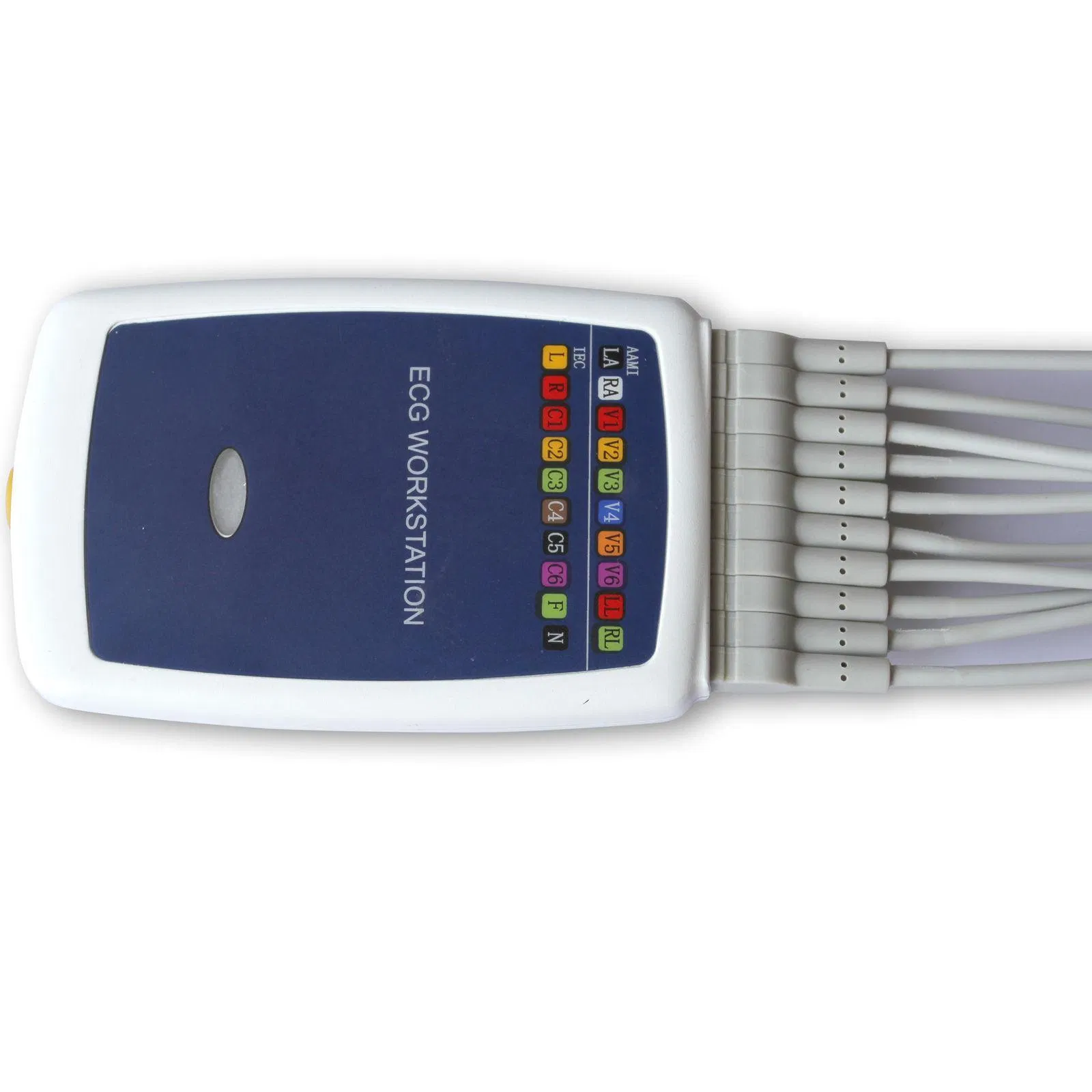

Medical Equipment ECG Systems/ ECG Workstation Machine (CONTEC8000G)
The ECG workstation is composed of a computer terminal and the CONTEC8000G unit. It features synchronous collection and analysis for 12-lead ECG, accurately reflecting the heart beat to provide a reliable basis for medical diagnosis.
Key Features
●Real-time sampling, display, and storage modes with QRS wave analysis.
●Three filtering methods: baseline, frequency, and EMG filtering.
●Advanced ECG analysis arithmetic for reliable auto-recognition of arrhythmia.
●"Shortcut print" function for previewing or saving reports in BMP, PNG, PDF, or JPG formats.
●Supports Wilson and Frank standard lead modes.
●High sampling frequency (1000Hz) ensures distortion-free ECG waves.
●Comprehensive database management for easy lookup, modification, and backup of case data.
●Advanced analysis functions including FCG, HRV, STLE, HRT, VCG, and TVCG.
Main Performance
- ✓
HR display range: 30bpm~300bpm (Error: ±1bpm)
- ✓
Input circuit current: ≤ 0.1μA
- ✓
CMRR: >60dB, >100dB (with filter)
- ✓
Noise level: ≤15μVp-p
- ✓
Operation temperature: +5ºC~+35ºC
Company Overview
| Business Type |
Manufacturer, Trading Company |
Year Established |
1996 |
| Total Employees |
Above 1000 People |
Certifications |
ISO13485, CE, RoHS, ISO14001, FSC |
| Main Markets |
North America (18%), Western Europe (15%), Domestic Market (30%) |
The manufacturer is a high-tech enterprise focused on research, production, and distribution of medical devices since 1996. With a vast facility covering 67,450 square meters, the company maintains a complete R&D and sales system, holding over 100 national patents and numerous international approvals including CE and FDA. Products are distributed to over 130 countries and regions worldwide.
Frequently Asked Questions
What is the primary function of the CONTEC8000G?
The CONTEC8000G is a specialized ECG workstation designed for synchronous 12-lead collection and analysis, providing doctors with accurate data for cardiac diagnosis.
What file formats are supported for ECG reports?
Users can preview and save analysis reports in various multimedia formats, including BMP, PNG, PDF, and JPG, for convenient digital storage and review.
Does the system include specific filters to ensure signal quality?
Yes, the equipment utilizes three filtering methods: baseline filtering, frequency filtering, and EMG filtering to ensure clear and accurate wave forms.
What is the sampling frequency and accuracy?
The system offers a high sampling frequency of up to 1000Hz and a sampling accuracy of up to 24 bits to ensure the highest detail in ECG waves.
Is the device protected against medical emergencies like defibrillation?
Yes, it is classified as a Class II Type CF applied part with built-in defibrillation protection for patient safety.
Can the workstation manage large amounts of patient data?
Absolutely. It features a powerful database management system that allows users to lookup, delete, modify, backup, and recover case information efficiently.
