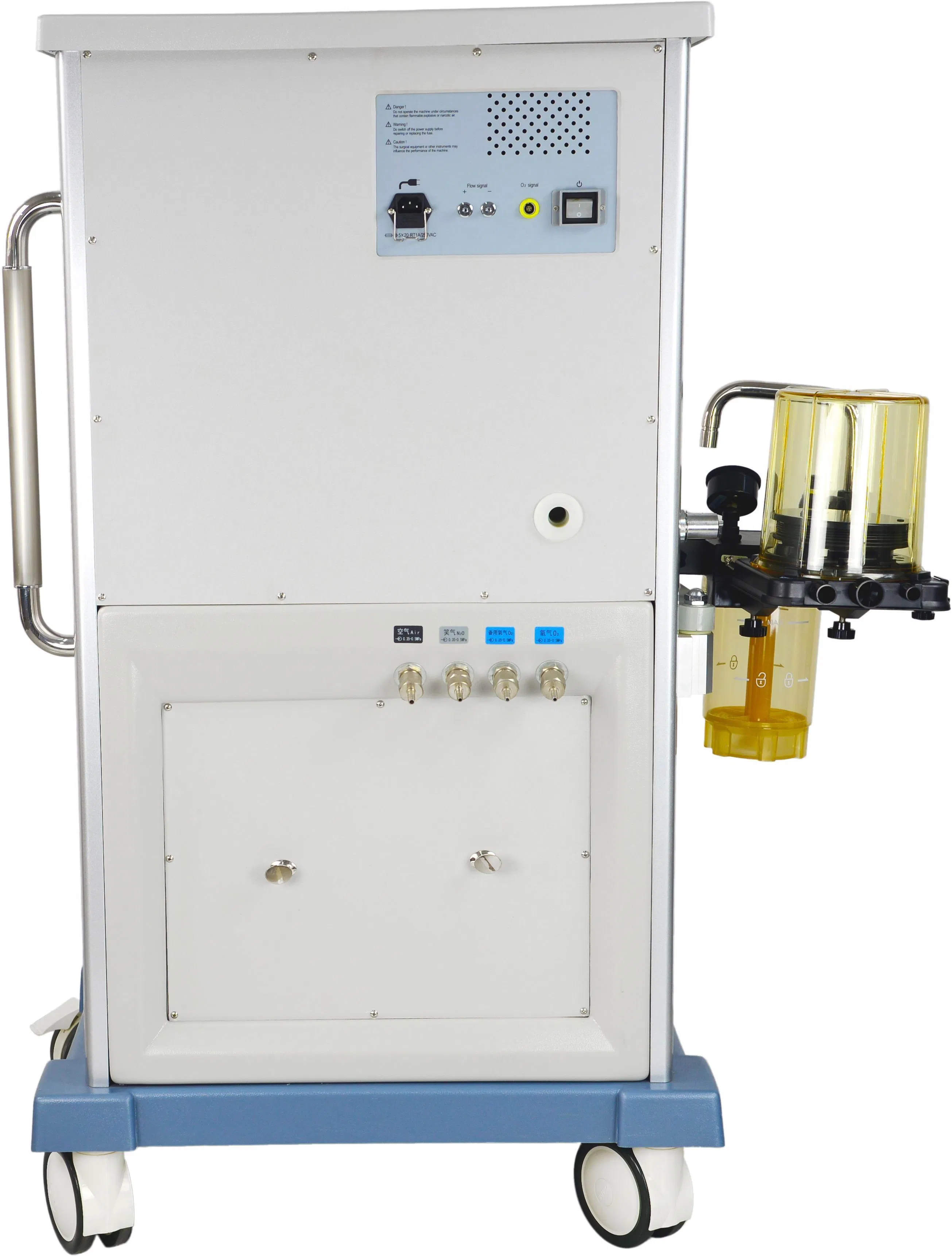

CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
1 / 5
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation
CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation

CE/ISO Certificate High Quality Medical Anesthesia Machine Jinling 850 Anesthesia Workstation

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Specifications

Model NO.
JINLING 850
Certification
ISO13485, ISO9001
LCD Display
10.4 Inch TFT Display
Ventilation Mode
IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, Standby
Tidal Volume
20-1500ml
Respiratory Rate
1-100bpm
PEEP
0-20CMH2o
Trademark
JINLING
Origin
China
HS Code
9018907010

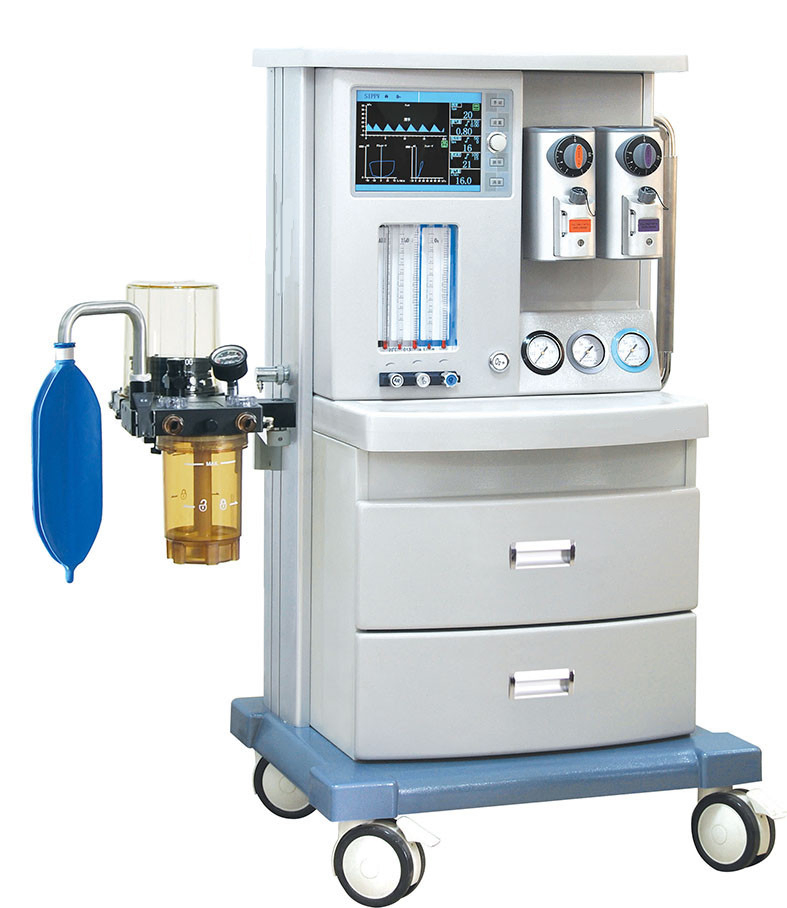

CE/ISO Certificate High Quality Medical Anesthesia Machine JINLING 850

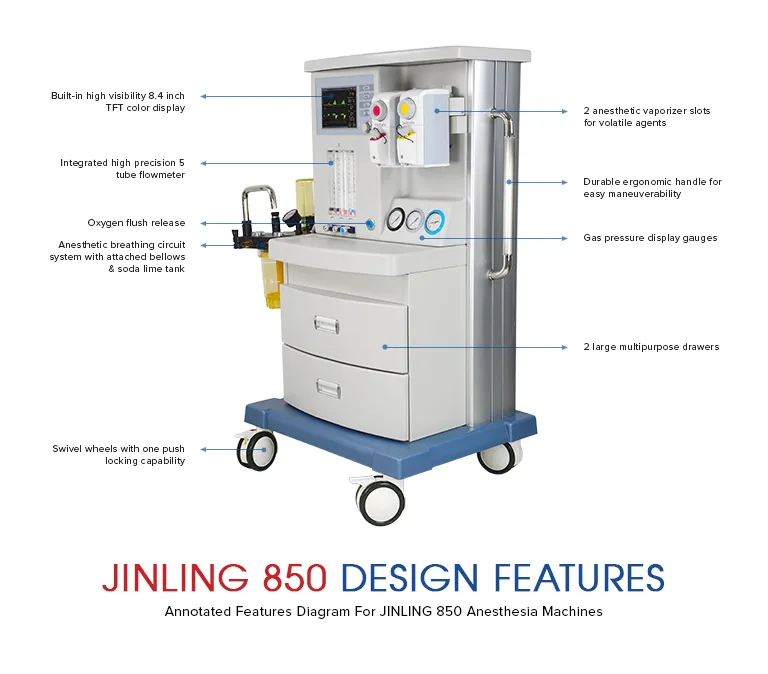

Anesthesia Workstation View 1

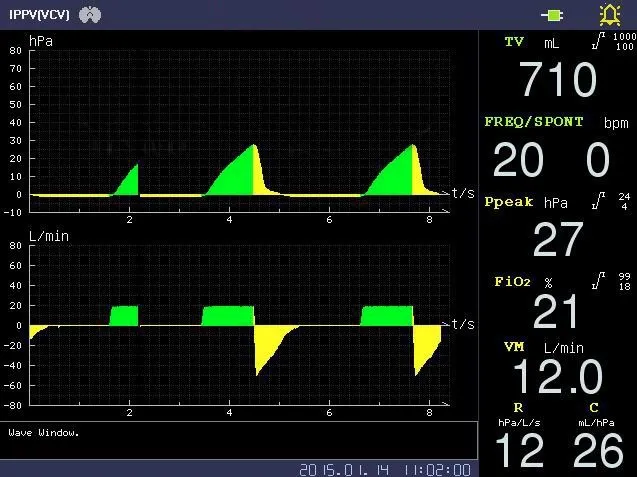

Anesthesia Workstation View 2

Core Features & Advantages

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open options.

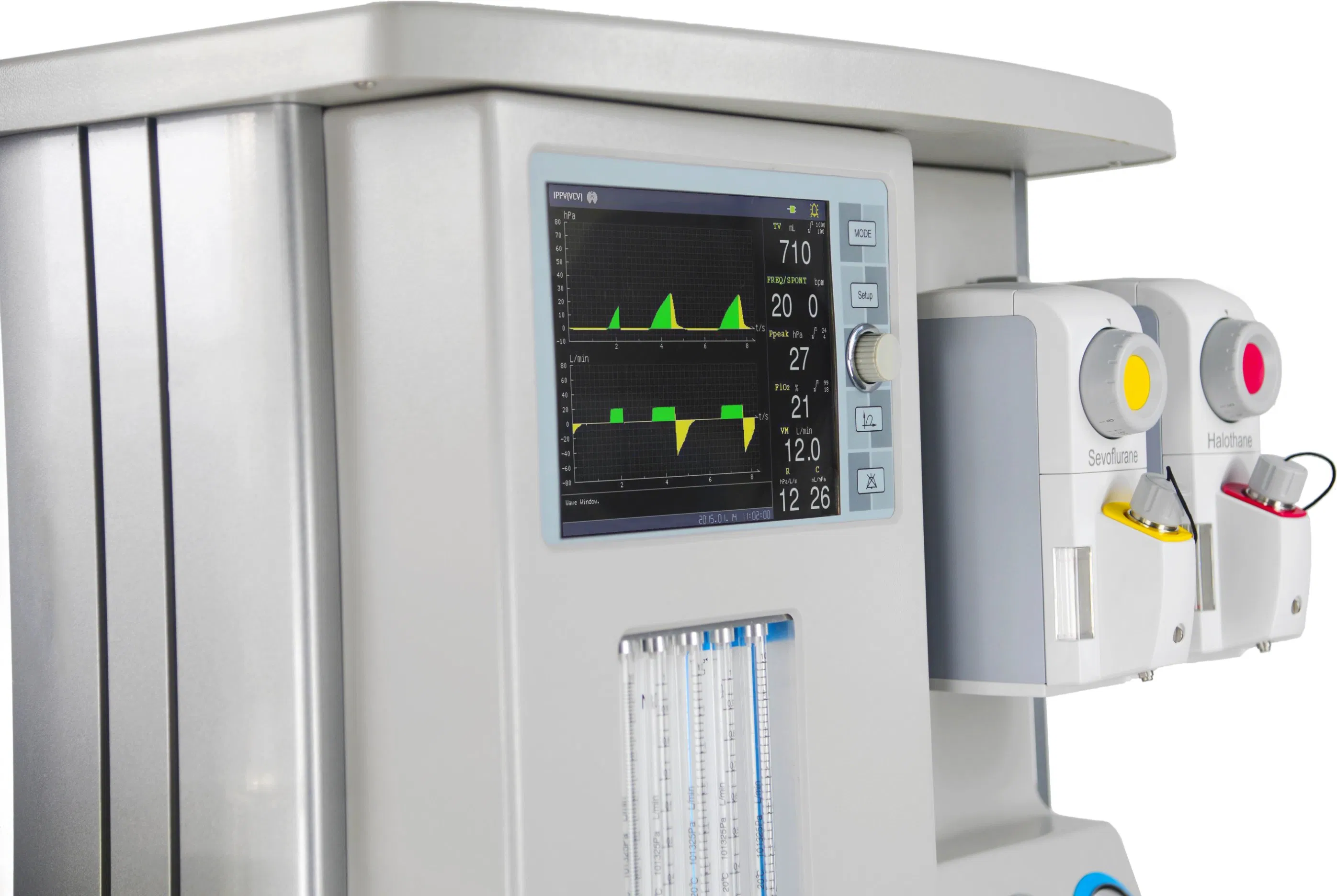

Built-in Color TFT Display: Displays Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume waveforms.
Integrated Respiratory Circuit: Metallic modular design ensures gas sealing under high-temperature disinfection.
Reliable Power Failure Support: Automatically converts to backup power mode during AC power outages.
Advanced Sensors: Equipped with an electronic pressure differential flow sensor and imported control valves for rapid response.
Oxygen Safety: High precision five-tube flowmeter with interlocking O2-N2O supply ensures oxygen never drops below 21%.
Smart Self-Checking: Automated self-checking function during startup and automatic self-calibrating sensors.
Comprehensive Alarms: Audible/visual alerts for tidal volume, airway pressure, oxygen concentration, asphyxia, and more.
Precision Vaporizer: Supports Enflurane, Isoflurane, and Sevoflurane with self-compensating functionality.
APL Valve: Advanced Adjustable Pressure Limiting valve suitable for low and ultra-low flow anesthesia.
Optional Monitoring: Compatible with multi-parameter patient monitors.

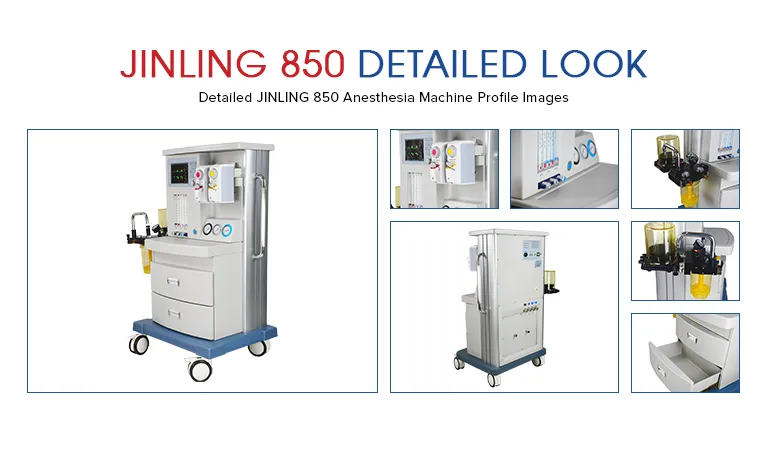

Component View 1

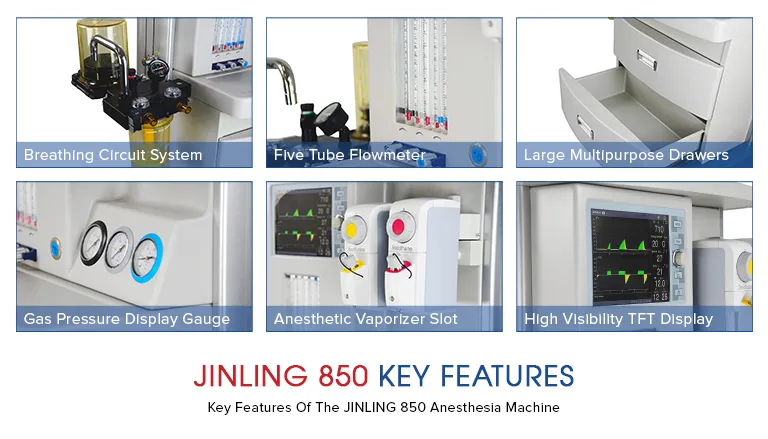

Component View 2

Technical Specifications

Model JINLING 850 (Advanced Model)
Display 10.4 inch TFT display
Flowmeter Range O2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation Modes IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power At least 4 hours
Tidal Volume Adjustable: 20-1500ml (Display: 0-2000ml)
Respiratory Rate 1-100bpm
I:E Ratio 8:1-1:10 (Capable of inverse ratio ventilation)
PEEP Range 0-20cmH2O (Electronically controlled)
SIGH 1 sigh breath in every 80-120 breaths
Vaporizer Slots Double PA-I type slots
Detail View 1
Detail View 2

Frequently Asked Questions

What ventilation modes are available on the JINLING 850?
The JINLING 850 supports a wide range of modes including IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, and Standby to accommodate various clinical needs.
How long does the backup battery last?
The built-in backup power supply provides at least 4 hours of operation in the event of an AC power failure.
Is the respiratory circuit easy to maintain?
Yes, it features a standard integrated metallic modular circuit that is completely sealed and designed for high-temperature disinfection and easy cleaning.
What type of display does the workstation use?
It is equipped with a high-resolution 10.4-inch TFT color display that provides clear visualization of waveforms and parameters.
Does it support low-flow anesthesia?
Yes, the advanced Adjustable Pressure Limiting (APL) valve makes the JINLING 850 highly suitable for both low and ultra-low flow anesthesia procedures.
What safety features are included for oxygen delivery?
The machine features an interlocking oxygen-nitrous oxide supply system that guarantees the oxygen concentration never falls below 21%.
