Customized High Quality Anesthesia Workstation JINLING 01B

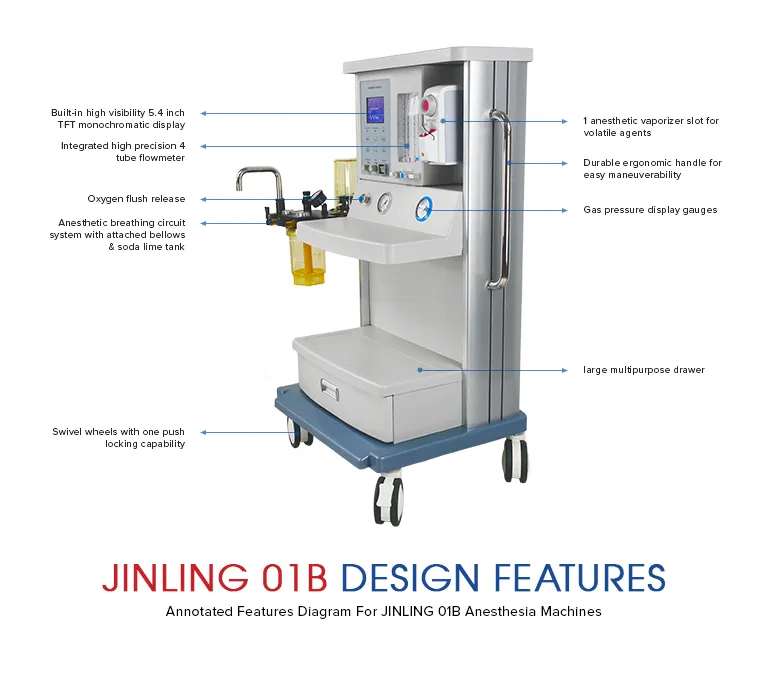

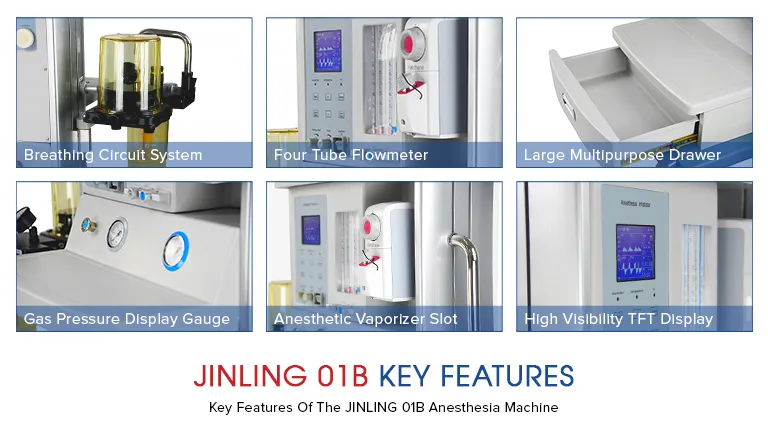

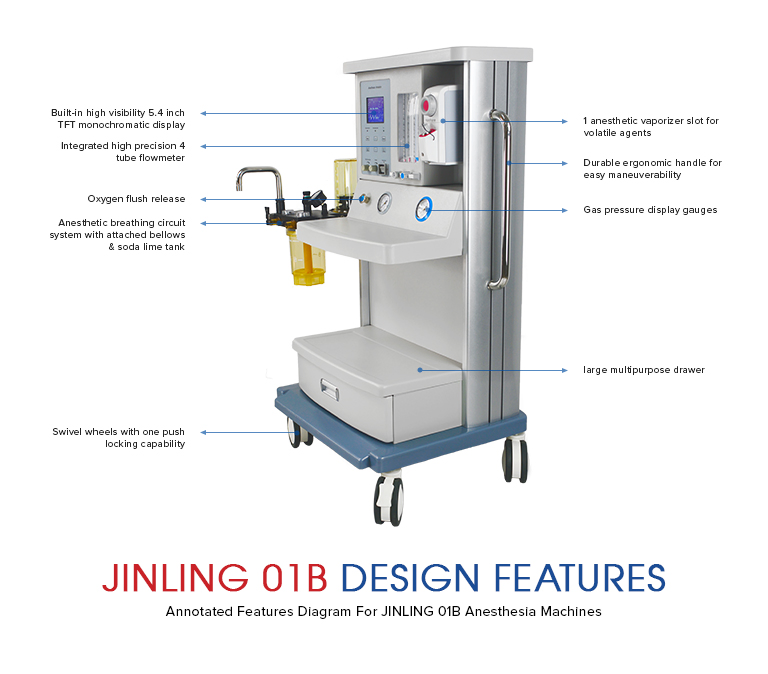

Key Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

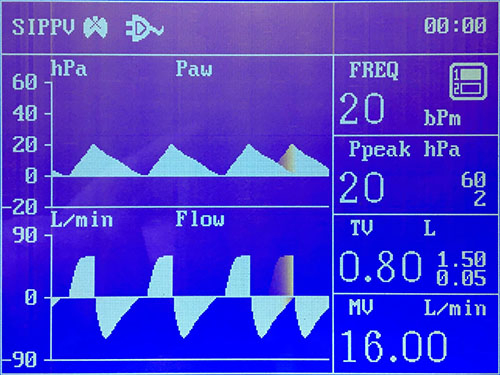

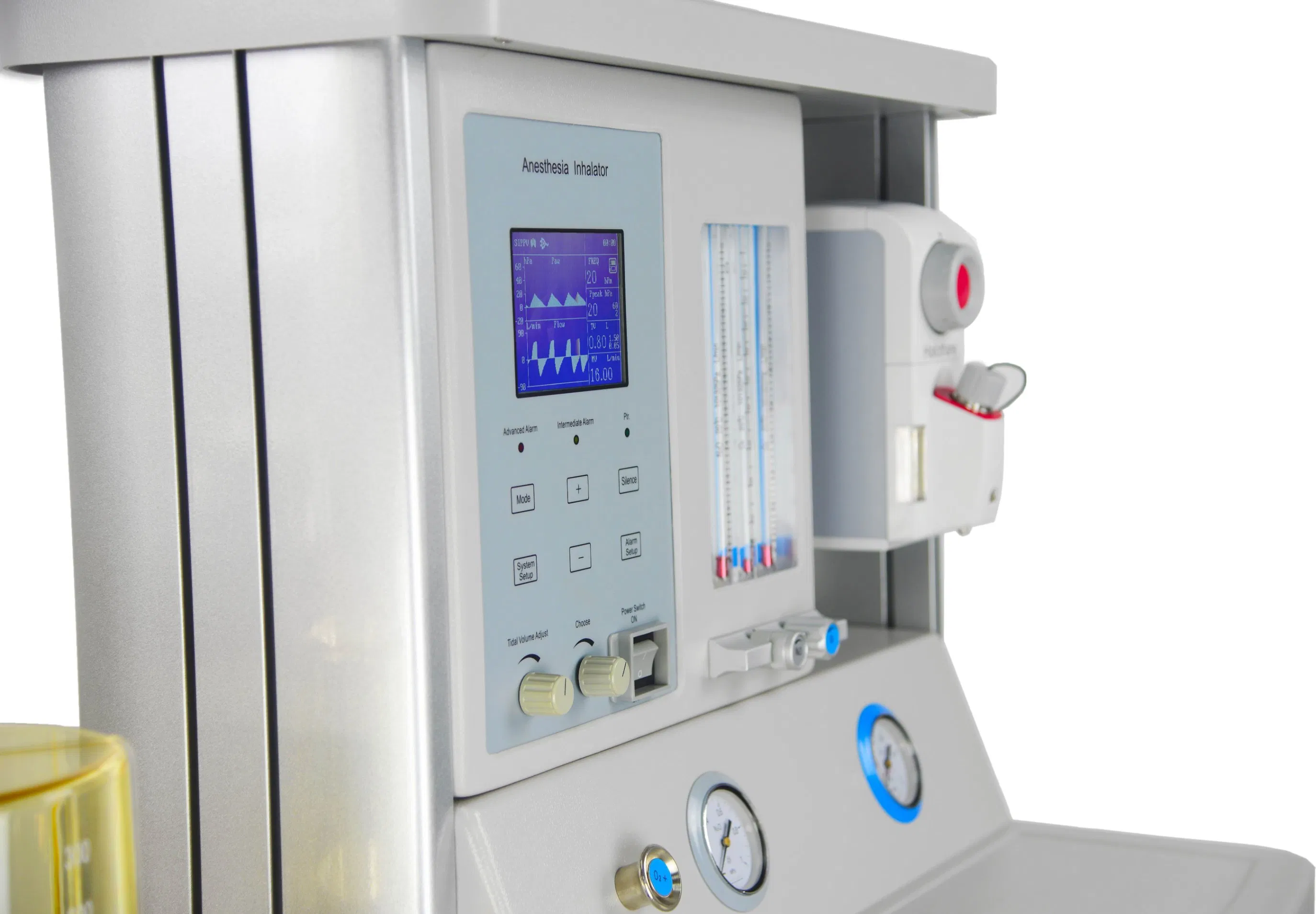

Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time waveforms.
Standard integrated metallic modular respiratory circuit; high temperature disinfection sealing.
Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
Vaporizer: Supports Enflurane, Isoflurane and Sevoflurane (Halothane optional) with self-compensating functionality.

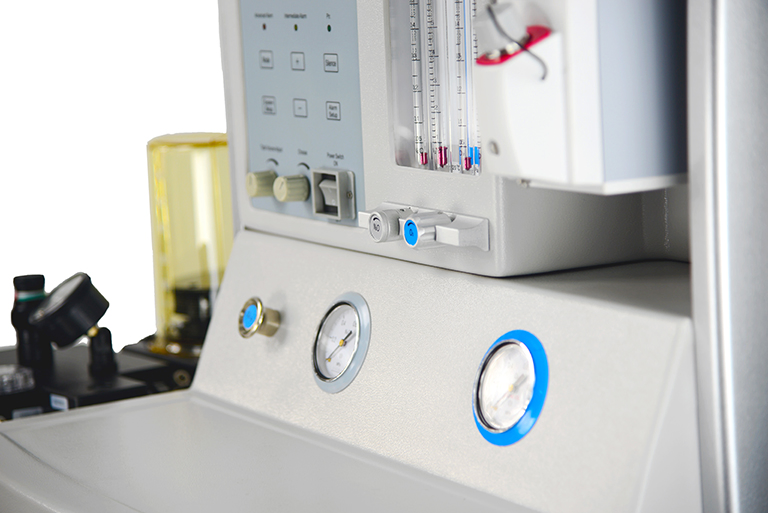

High precision four tube flowmeter with interlocking oxygen-nitrous oxide supply.
Automated self-checking function during startup and an automatic self-calibrating sensor.
Power Failure Support: Automatically converts to backup power mode during AC power outages.
Comprehensive Alarms: Audible/visual alarms for tidal volume, airway pressure, asphyxia, and oxygen failure.
Advanced rotating Na-lime tank using imported PPSU material (temperature resistant to 134°C).
Optional: Multi-parameter Patient Monitor
⚙️ Technical Specifications
| Parameter |
Details |
| Model | JINLING -01B advanced model |
| Display | 5.4 inch TFT display |
| Flowmeter Range | O2: 0.1-10L/min; N2O: 0.1-10L/min |
| Ventilation Mode | IPPV, SIPPV, IMV, SIMV, MANUAL |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable: 50-1500ml (Display: 0-2000ml) |
| Respiratory Rate | 1-99bpm |
| (I:E) Ratio | 4:1-1:10 (Capable of inverse ratio ventilation) |
| Oxygen Supply Flow | 25~75L/min |
| Pressure Trigger | -10-10cmH2O (Electronically controlled) |
| SIGH Function | 1 sigh breath in every 80-120 breaths |
| Vaporizer | Double PA-I type slots (Concentration 0-5%) |
❓ Frequently Asked Questions
What ventilation modes are available on the JINLING 01B?
The JINLING 01B supports multiple ventilation modes including IPPV, SIPPV, IMV, SIMV, and MANUAL mode, catering to various clinical requirements.
How long does the backup battery last during a power failure?
The system is equipped with an automatic power failure support function that provides at least 4 hours of backup power supply.
What is the tidal volume range for this anesthesia workstation?
The tidal volume is highly adjustable, ranging from 50ml to 1500ml, making it suitable for a wide range of adult patients.
Does the machine include a vaporizer?
Yes, it features double vaporizer slots (PA-I type) and supports Enflurane, Isoflurane, and Sevoflurane with a concentration range of 0-5%.
Is the respiratory circuit easy to clean and disinfect?
Yes, the machine uses a standard integrated metallic modular respiratory circuit which is designed for easy cleaning and high-temperature disinfection.
What safety alarms are integrated into the system?
The workstation includes audible and visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen failure to ensure patient safety.
