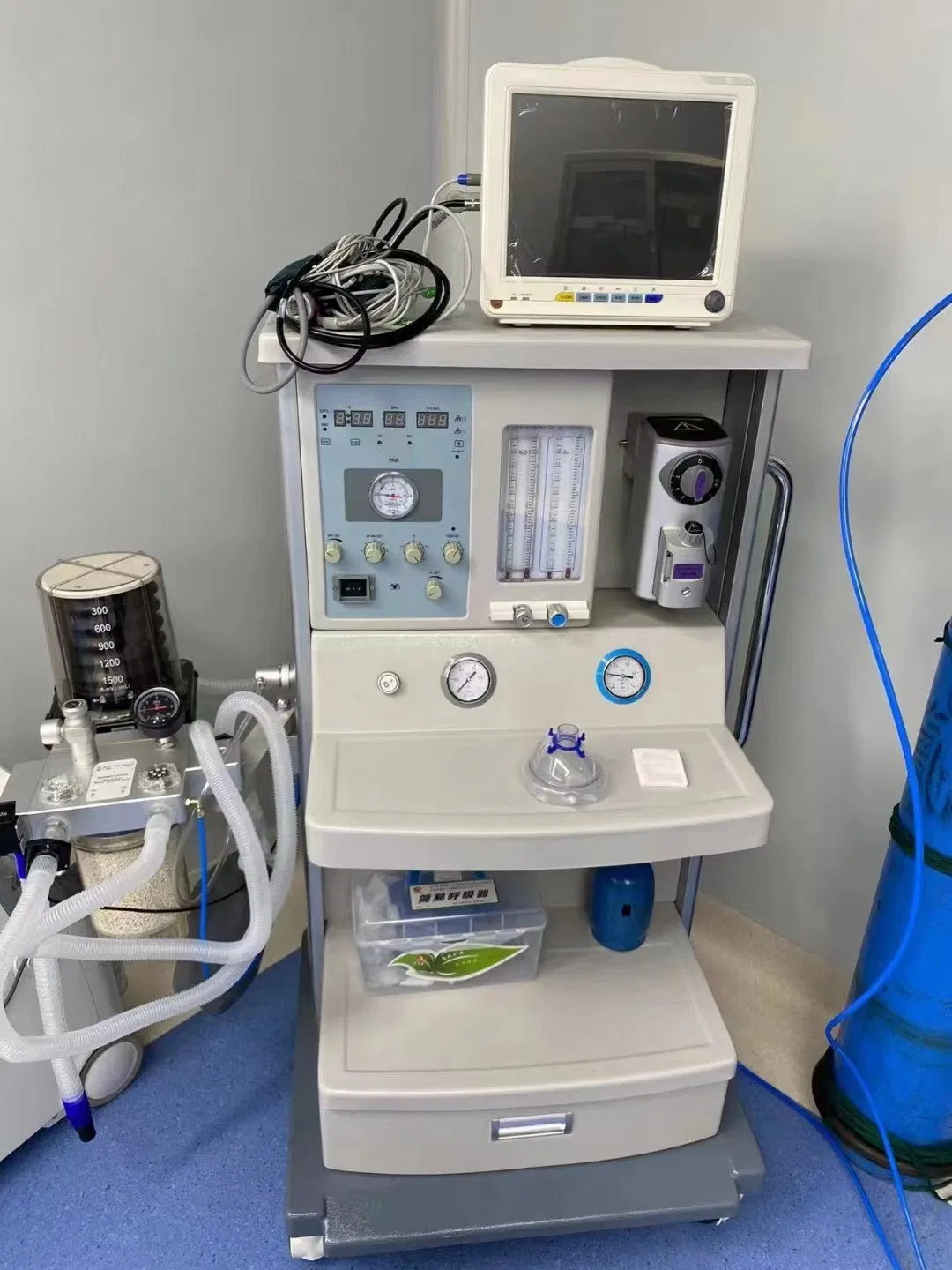

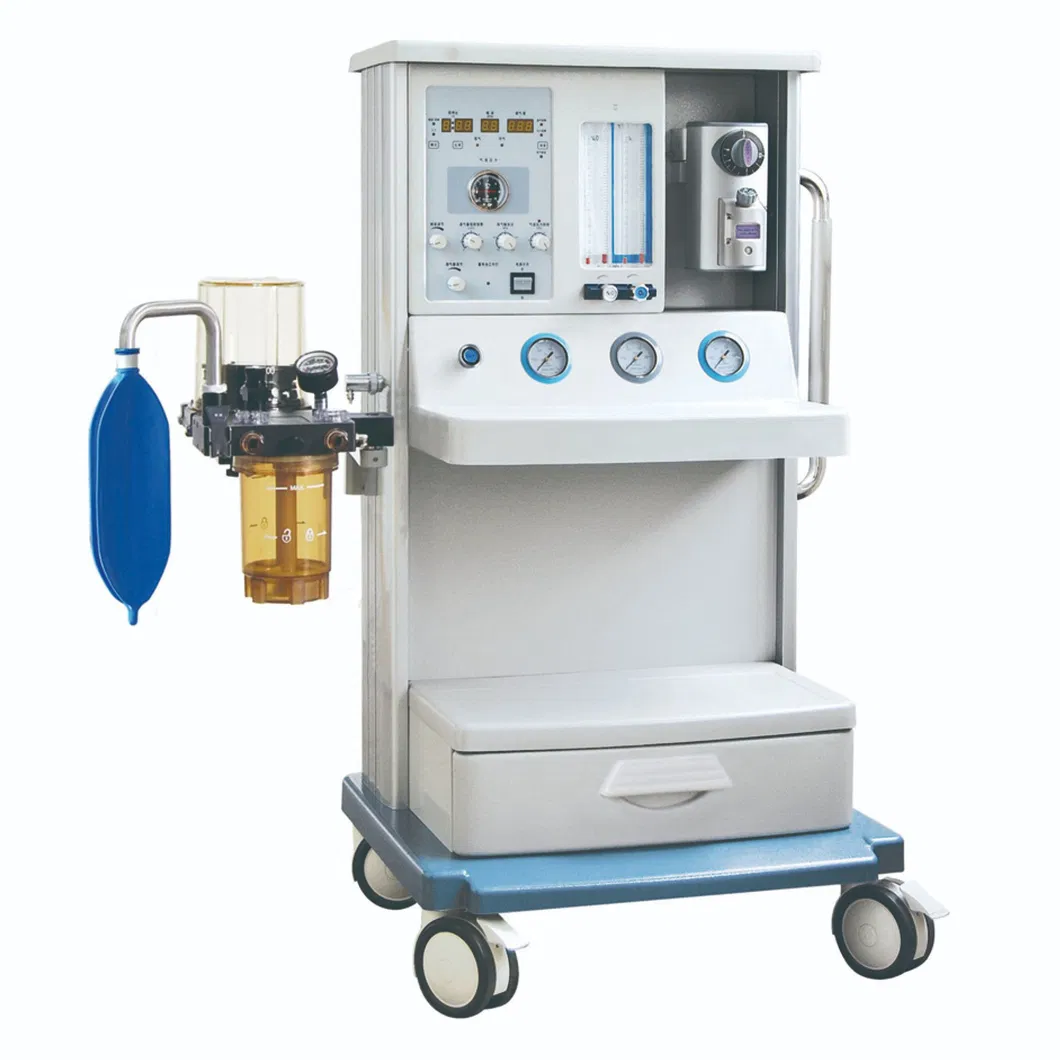

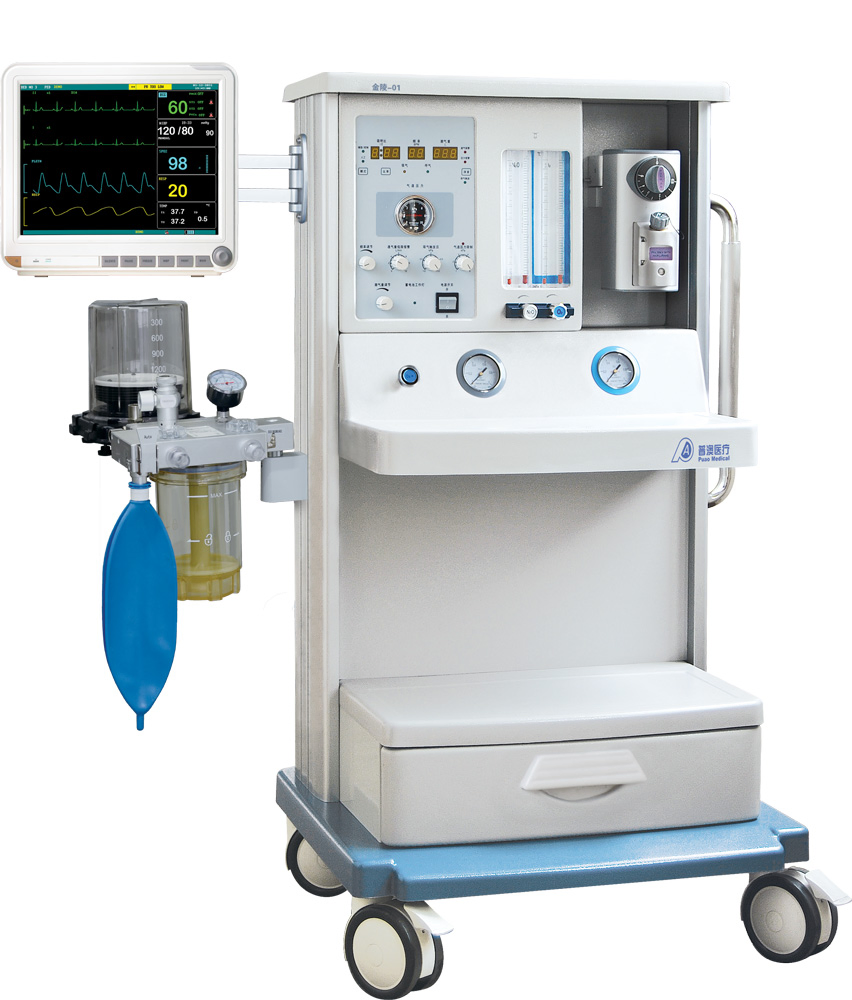

Direct Factory Sale Surgical Anesthesia Machine & Workstation with Single vaporizer
Basic Information
Model NO.01
CertificationCE, ISO13485
GroupAdult
LCD DisplayWith LCD Display
Ventilation ModeA/C, IPPV, SIPPV, Manual
Tidal Volume50-1500ml
(I:E) Ratio1:1.5~1:3.0
Respiratory Rate4~40 Bpm
O2 Flush25-75 L/Min
Pressure Trigger-10-10CMH2o
Vaporizer Concentration0-5%
Absorber Volume1.5L
Common Features
◈
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open modes.
◈

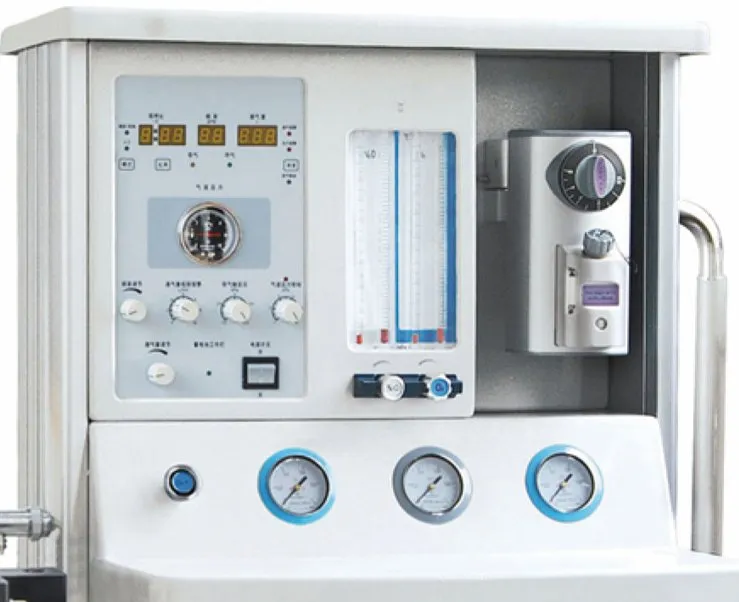

Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display.
◈
Integrated Circuit: Standard integrated metallic modular respiratory circuit; solves gas sealing under high temperature disinfection.
◈
Flowmeter: High precision two tube flowmeter with interlocking O2-N2O supply, ensuring oxygen output ≥ 21%.
◈
Power Support: Automatically converts to backup power mode during AC power outages (minimum 4 hours).
◈
Design: Fully metallic frame, precise construction, equipped with automated self-checking and self-calibrating sensors.
◈
Alarms: Audible and visual alarms for tidal volume, airway pressure, power failure, and oxygen failure.
◈
Vaporizer: Local assembly with imported tank components; supports Enflurane, Isoflurane, and Sevoflurane.
Technical Specifications
| Feature |
Standard Model |
Advanced Model |
| Display |
LED |
| Flowmeter Range |
O2: 0.1-10L/min | N2O: 0.1-10L/min |
| Ventilation Mode |
IPPV, SIPPV, MANUAL |
| Tidal Volume |
Adjustable: 50-1500ml | Display: 0-2000ml |
| Respiratory Rate |
4-40bpm |
| I:E Ratio |
1:1.5 - 1:3.0 |
| Vaporizer Slots |
Single PA-80 type slot |
Double PA-80 type slots |
Frequently Asked Questions
What are the primary ventilation modes supported?
The machine supports multiple modes including A/C, IPPV, SIPPV, and Manual ventilation to accommodate various surgical requirements.
How long does the backup battery last during a power failure?
The workstation is equipped with a backup power supply that provides at least 4 hours of operation during AC power outages.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection and easy cleaning.
What safety mechanisms are in place for oxygen delivery?
It includes a high-precision flowmeter with an interlocking oxygen-nitrous oxide supply system, guaranteeing that oxygen output never drops below 21%.
What types of anesthetic agents can the vaporizer use?
The vaporizer supports Enflurane, Isoflurane, and Sevoflurane, with Halothane available as an optional configuration.
Can this machine be used for pediatric patients?
While the primary group listed is adult, the tidal volume is adjustable from 50ml to 1500ml, providing flexibility for different patient needs.
